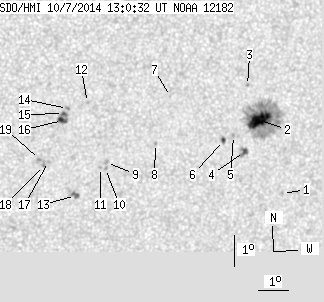

SDO HMI 2014-10-07 13:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.96 | 140.44 | 16.78 | 81.51 | -14.15 | 122.23 | 23.80 | 228.74 | 0.5219 | 246.1 | 177.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-07 13:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.74 | -16.39 | 124.47 | 26.04 | 228.24 | 0.5668 | -735.0 | -494.0 | |
| 20.10 | 103.30 | 11.74 | 60.41 | -13.99 | 123.37 | 24.94 | 230.45 | 0.5327 | 1098.9 | 334.2 | |
| 0.00 | 1.05 | 0.00 | 0.61 | -12.85 | 122.84 | 24.41 | 231.58 | 0.5163 | 783.0 | 670.7 | |
| 1.76 | 4.83 | 1.03 | 2.83 | -14.96 | 122.97 | 24.54 | 228.58 | 0.5373 | 858.7 | 684.7 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -14.43 | 122.53 | 24.10 | 228.85 | 0.5274 | 870.0 | 660.3 | |
| 1.14 | 2.37 | 0.66 | 1.38 | -14.57 | 122.21 | 23.78 | 228.25 | 0.5252 | 818.5 | 748.2 | |
| 0.00 | 0.53 | 0.00 | 0.30 | -13.08 | 120.28 | 21.85 | 228.11 | 0.4890 | 778.0 | 612.0 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -14.56 | 119.93 | 21.50 | 225.40 | 0.5002 | 824.0 | 639.6 | |
| 0.00 | 2.11 | 0.00 | 1.19 | -15.10 | 118.36 | 19.93 | 222.45 | 0.4895 | -810.0 | -697.0 | |
| 0.00 | 1.32 | 0.00 | 0.75 | -15.30 | 118.34 | 19.91 | 222.16 | 0.4915 | -746.0 | -640.2 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -15.26 | 118.17 | 19.74 | 221.97 | 0.4893 | -838.0 | -691.5 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -13.15 | 117.56 | 19.13 | 224.19 | 0.4597 | -713.0 | -604.4 | |
| 1.58 | 4.12 | 0.90 | 2.34 | -16.13 | 117.43 | 19.00 | 219.69 | 0.4918 | -877.5 | -716.4 | |
| 0.00 | 1.76 | 0.00 | 0.98 | -13.32 | 116.92 | 18.49 | 222.97 | 0.4548 | -961.0 | -823.0 | |
| 1.05 | 9.04 | 0.59 | 5.03 | -13.48 | 116.81 | 18.38 | 222.55 | 0.4553 | -1044.2 | -791.3 | |
| 3.33 | -15.00 | 1.86 | -15.00 | -13.70 | 116.79 | 18.36 | 222.19 | 0.4576 | -855.8 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -15.00 | 116.44 | 18.01 | 219.75 | 0.4690 | -695.0 | -587.0 | |
| 0.00 | 1.67 | 0.00 | 0.93 | -15.12 | 116.29 | 17.86 | 219.34 | 0.4690 | -852.0 | -735.6 | |
| 0.00 | 1.58 | 0.00 | 0.88 | -14.92 | 116.14 | 17.71 | 219.39 | 0.4652 | -904.0 | -735.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
