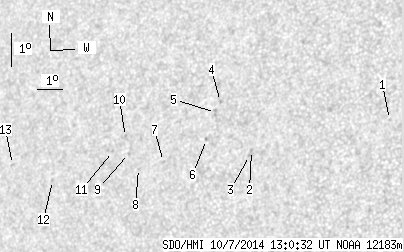

SDO HMI 2014-10-07 13:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.92 | 0.00 | 9.62 | 13.49 | 58.87 | -39.56 | 76.36 | 0.6385 | 54.8 | -41.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-07 13:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.62 | 14.66 | 66.71 | -31.72 | 72.53 | 0.5354 | -615.0 | -483.2 | |
| 0.00 | 1.14 | 0.00 | 0.71 | 13.42 | 61.75 | -36.68 | 76.08 | 0.6008 | -501.0 | -476.7 | |
| 0.00 | 1.49 | 0.00 | 0.92 | 13.26 | 61.70 | -36.73 | 76.34 | 0.6012 | -588.0 | -497.6 | |
| 0.00 | 0.97 | 0.00 | 0.61 | 14.81 | 60.28 | -38.15 | 74.14 | 0.6231 | -762.0 | -615.7 | |
| 0.00 | 2.63 | 0.00 | 1.67 | 14.47 | 60.15 | -38.28 | 74.71 | 0.6241 | -639.0 | -503.0 | |
| 0.00 | 1.23 | 0.00 | 0.78 | 13.63 | 59.96 | -38.47 | 76.08 | 0.6251 | -279.0 | -298.7 | |
| 0.00 | 0.97 | 0.00 | 0.62 | 12.86 | 58.39 | -40.04 | 77.56 | 0.6445 | 736.0 | 610.5 | |
| 0.00 | 0.35 | 0.00 | 0.23 | 12.58 | 57.44 | -40.99 | 78.12 | 0.6566 | 571.0 | 490.8 | |
| 0.00 | 1.14 | 0.00 | 0.75 | 13.00 | 56.94 | -41.49 | 77.54 | 0.6634 | 644.0 | 510.2 | |
| 0.00 | 1.14 | 0.00 | 0.76 | 13.50 | 56.71 | -41.72 | 76.82 | 0.6669 | 596.0 | 552.0 | |
| 0.00 | 0.88 | 0.00 | 0.59 | 13.01 | 56.28 | -42.15 | 77.61 | 0.6718 | 516.0 | 406.7 | |
| 0.00 | 0.79 | 0.00 | 0.55 | 11.96 | 53.96 | -44.47 | 79.38 | 0.6996 | 459.0 | 410.3 | |
| 0.00 | 1.14 | 0.00 | 0.81 | 12.31 | 52.13 | -46.30 | 79.03 | 0.7218 | 575.0 | 471.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
