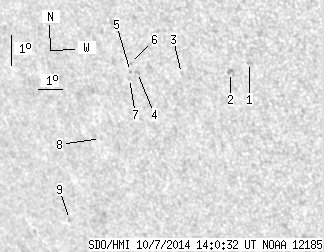

SDO HMI 2014-10-07 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.56 | 0.00 | 8.57 | -13.79 | 59.07 | -38.81 | 117.82 | 0.6895 | 34.8 | 187.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-07 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.28 | 0.00 | 1.48 | -12.76 | 62.19 | -35.69 | 118.39 | 0.6491 | 638.0 | 616.3 | |
| 0.00 | 3.60 | 0.00 | 2.37 | -13.13 | 61.40 | -36.48 | 118.37 | 0.6603 | 625.0 | 586.0 | |
| 0.00 | 0.88 | 0.00 | 0.59 | -13.30 | 59.47 | -38.41 | 117.38 | 0.6833 | 542.0 | 377.5 | |
| 0.00 | 2.02 | 0.00 | 1.40 | -13.40 | 57.69 | -40.19 | 116.48 | 0.7037 | -730.0 | -617.1 | |
| 0.00 | 0.70 | 0.00 | 0.49 | -13.38 | 57.41 | -40.47 | 116.31 | 0.7067 | -506.0 | -498.2 | |
| 0.00 | 0.53 | 0.00 | 0.37 | -13.13 | 57.46 | -40.42 | 116.00 | 0.7049 | -708.0 | -589.5 | |
| 0.00 | 0.70 | 0.00 | 0.49 | -13.61 | 57.32 | -40.56 | 116.56 | 0.7088 | -501.0 | -446.0 | |
| 0.00 | 0.97 | 0.00 | 0.70 | -15.65 | 55.64 | -42.24 | 118.21 | 0.7369 | 665.0 | 527.6 | |
| 0.00 | 0.88 | 0.00 | 0.68 | -18.45 | 53.48 | -44.40 | 120.42 | 0.7719 | 288.0 | 379.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
