SDO HMI 2014-10-07 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.71 | 175.29 | 24.71 | 168.97 | -1.84 | 155.83 | 58.50 | 263.98 | 0.8590 | 810.4 | 214.2 | |
|
previous
or next observation for the same group /

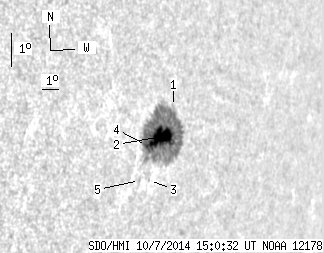

back to the solar disc SDO HMI 2014-10-07 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 1.37 | -0.99 | 156.54 | 59.21 | 265.08 | 0.8641 | 12.0 | 17.5 | |
| 24.57 | 172.22 | 23.64 | 166.03 | -1.83 | 155.87 | 58.54 | 264.00 | 0.8593 | 865.9 | 213.9 | |
| 0.00 | 0.70 | 0.00 | 0.67 | -3.10 | 155.27 | 57.94 | 262.42 | 0.8558 | 478.0 | 404.2 | |
| 1.14 | -2.00 | 1.07 | -2.00 | -2.02 | 155.03 | 57.69 | 263.63 | 0.8520 | 939.5 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.90 | -3.05 | 154.70 | 57.37 | 262.37 | 0.8506 | 493.0 | 421.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
