SDO HMI 2014-10-07 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 20.54 | 0.00 | 12.75 | 14.26 | 59.79 | -36.44 | 73.96 | 0.5984 | -102.1 | -113.5 | |
|
previous
or next observation for the same group /

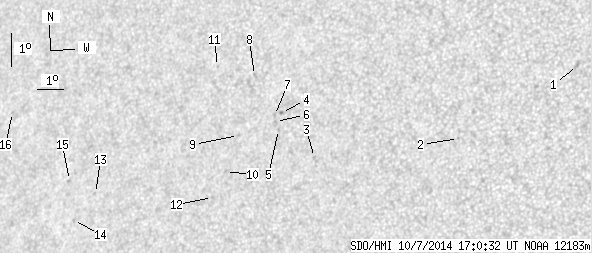

back to the solar disc SDO HMI 2014-10-07 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.68 | 0.00 | 2.05 | 16.86 | 70.72 | -25.51 | 64.99 | 0.4567 | -812.0 | -563.4 | |
| 0.00 | 0.88 | 0.00 | 0.50 | 14.45 | 66.89 | -29.34 | 71.99 | 0.5009 | -671.0 | -541.0 | |
| 0.00 | 1.05 | 0.00 | 0.63 | 13.58 | 61.78 | -34.45 | 75.28 | 0.5707 | -425.0 | -392.1 | |
| 0.00 | 1.32 | 0.00 | 0.81 | 14.86 | 60.30 | -35.93 | 73.50 | 0.5937 | -784.0 | -648.3 | |
| 0.00 | 0.88 | 0.00 | 0.54 | 14.34 | 60.28 | -35.95 | 74.37 | 0.5928 | -610.0 | -542.3 | |
| 0.00 | 1.05 | 0.00 | 0.65 | 14.58 | 60.12 | -36.11 | 74.02 | 0.5955 | -731.0 | -571.9 | |
| 0.00 | 1.32 | 0.00 | 0.81 | 14.75 | 60.05 | -36.18 | 73.74 | 0.5968 | -572.0 | -463.0 | |
| 0.00 | 1.67 | 0.00 | 1.04 | 15.91 | 59.04 | -37.19 | 72.13 | 0.6130 | -596.0 | -462.7 | |
| 0.00 | 0.88 | 0.00 | 0.55 | 14.06 | 58.79 | -37.44 | 75.18 | 0.6122 | -516.0 | -433.2 | |
| 0.00 | 1.23 | 0.00 | 0.77 | 12.95 | 58.49 | -37.74 | 77.05 | 0.6144 | 660.0 | 587.3 | |
| 0.00 | 0.96 | 0.00 | 0.62 | 16.09 | 57.53 | -38.69 | 72.26 | 0.6330 | 636.0 | 471.5 | |
| 0.00 | 1.23 | 0.00 | 0.77 | 12.14 | 58.12 | -38.11 | 78.42 | 0.6182 | 607.0 | 440.1 | |
| 0.00 | 0.79 | 0.00 | 0.53 | 11.93 | 53.43 | -42.80 | 79.28 | 0.6788 | 450.0 | 520.3 | |
| 0.00 | 1.32 | 0.00 | 0.89 | 11.06 | 52.67 | -43.56 | 80.62 | 0.6877 | 681.0 | 507.9 | |
| 0.00 | 1.49 | 0.00 | 1.02 | 12.24 | 52.27 | -43.96 | 78.94 | 0.6935 | 498.0 | 429.3 | |
| 0.00 | 0.79 | 0.00 | 0.57 | 14.08 | 49.33 | -46.90 | 76.63 | 0.7303 | 551.0 | 450.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
