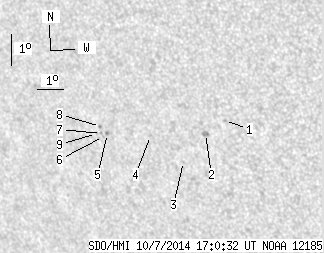

SDO HMI 2014-10-07 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.89 | 0.00 | 7.16 | -13.33 | 59.78 | -36.44 | 118.72 | 0.6609 | -90.4 | 83.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-07 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.78 | -12.74 | 62.35 | -33.88 | 119.61 | 0.6277 | 754.0 | 598.5 | |
| 0.00 | 3.51 | 0.00 | 2.26 | -13.20 | 61.56 | -34.66 | 119.70 | 0.6398 | 759.0 | 593.7 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -14.15 | 60.57 | -35.66 | 120.31 | 0.6571 | 370.0 | 357.4 | |
| 0.00 | 1.14 | 0.00 | 0.75 | -13.40 | 59.44 | -36.79 | 118.54 | 0.6655 | 657.0 | 478.0 | |
| 0.00 | 1.32 | 0.00 | 0.89 | -13.46 | 57.75 | -38.48 | 117.56 | 0.6849 | -810.0 | -705.9 | |
| 0.00 | 0.26 | 0.00 | 0.18 | -13.57 | 57.57 | -38.66 | 117.60 | 0.6875 | -684.0 | -694.0 | |
| 0.00 | 0.88 | 0.00 | 0.60 | -13.48 | 57.51 | -38.72 | 117.44 | 0.6877 | -716.0 | -630.2 | |
| 0.00 | 1.14 | 0.00 | 0.77 | -13.25 | 57.51 | -38.71 | 117.15 | 0.6865 | -748.0 | -681.3 | |
| 0.00 | 0.53 | 0.00 | 0.36 | -13.49 | 57.31 | -38.92 | 117.34 | 0.6900 | -396.0 | -323.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
