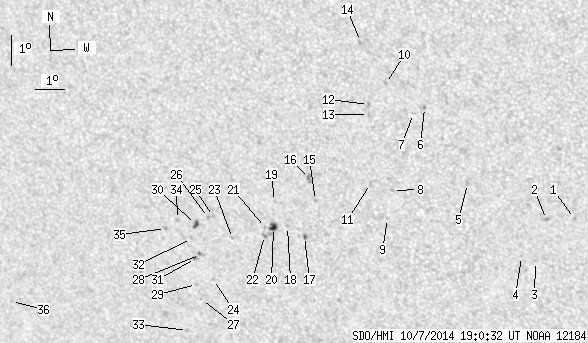

SDO HMI 2014-10-07 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.23 | 56.39 | 3.85 | 34.42 | -20.84 | 71.85 | -23.28 | 140.87 | 0.5835 | 43.5 | -69.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-07 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.65 | -20.58 | 81.65 | -13.47 | 154.17 | 0.5024 | 834.0 | 654.0 | |
| 0.00 | 1.58 | 0.00 | 0.91 | -20.64 | 80.73 | -14.40 | 152.70 | 0.5095 | 908.0 | 694.1 | |
| 0.00 | 0.53 | 0.00 | 0.31 | -22.07 | 80.21 | -14.91 | 153.24 | 0.5317 | 607.0 | 519.3 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -21.92 | 79.76 | -15.36 | 152.40 | 0.5327 | 624.0 | 517.2 | |
| 0.00 | 1.75 | 0.00 | 1.01 | -19.51 | 78.23 | -16.90 | 147.62 | 0.5136 | 779.0 | 644.8 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -17.05 | 77.06 | -18.06 | 142.92 | 0.4936 | 848.0 | 738.8 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -17.26 | 76.68 | -18.45 | 142.61 | 0.4996 | 544.0 | 513.2 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -19.83 | 75.67 | -19.45 | 144.29 | 0.5387 | 516.0 | 385.9 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -20.78 | 75.38 | -19.75 | 144.95 | 0.5522 | 406.0 | 320.2 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -16.31 | 75.85 | -19.27 | 140.16 | 0.4965 | 886.0 | 700.1 | |
| 0.00 | 1.84 | 0.00 | 1.08 | -19.63 | 74.96 | -20.17 | 143.07 | 0.5426 | 690.0 | 487.7 | |
| 0.00 | 1.75 | 0.00 | 1.01 | -17.02 | 75.21 | -19.91 | 140.18 | 0.5107 | 845.0 | 707.8 | |
| 0.00 | 1.93 | 0.00 | 1.11 | -17.35 | 75.17 | -19.95 | 140.56 | 0.5147 | 781.0 | 540.8 | |
| 0.00 | 0.35 | 0.00 | 0.20 | -14.98 | 75.16 | -19.96 | 137.32 | 0.4885 | 710.0 | 629.2 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -20.28 | 72.98 | -22.14 | 141.28 | 0.5673 | -675.0 | -569.1 | |
| 0.00 | 3.77 | 0.00 | 2.25 | -19.55 | 72.89 | -22.24 | 140.29 | 0.5603 | -932.0 | -762.0 | |
| 0.70 | 1.84 | 0.43 | 1.12 | -21.51 | 72.40 | -22.72 | 141.99 | 0.5857 | 777.1 | 646.5 | |
| 0.00 | 1.23 | 0.00 | 0.75 | -21.20 | 71.86 | -23.26 | 140.99 | 0.5872 | 643.0 | 393.7 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -20.38 | 71.54 | -23.58 | 139.65 | 0.5814 | -644.0 | -522.2 | |
| 3.51 | 8.07 | 2.15 | 4.95 | -21.26 | 71.36 | -23.76 | 140.47 | 0.5922 | 657.4 | 62.8 | |
| 0.00 | 1.32 | 0.00 | 0.81 | -21.27 | 71.08 | -24.05 | 140.16 | 0.5949 | 403.0 | 292.5 | |
| 0.00 | 1.67 | 0.00 | 1.03 | -21.55 | 70.99 | -24.13 | 140.37 | 0.5984 | -643.0 | -344.3 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -21.70 | 69.83 | -25.30 | 139.25 | 0.6105 | 432.0 | 316.9 | |
| 0.00 | 0.88 | 0.00 | 0.56 | -23.15 | 68.85 | -26.27 | 139.84 | 0.6333 | -631.0 | -592.9 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -20.99 | 69.28 | -25.84 | 137.83 | 0.6084 | -662.0 | -413.3 | |
| 0.00 | 1.14 | 0.00 | 0.71 | -21.03 | 69.10 | -26.03 | 137.68 | 0.6106 | -876.0 | -618.2 | |
| 0.00 | 0.61 | 0.00 | 0.40 | -23.87 | 68.25 | -26.87 | 140.01 | 0.6454 | -589.0 | -479.9 | |
| 0.00 | 2.28 | 0.00 | 1.45 | -22.31 | 68.56 | -26.57 | 138.59 | 0.6278 | -705.0 | -430.7 | |
| 0.00 | 0.88 | 0.00 | 0.56 | -23.36 | 68.18 | -26.94 | 139.38 | 0.6411 | -719.0 | -633.2 | |
| 2.02 | 3.68 | 1.27 | 2.32 | -21.29 | 68.58 | -26.54 | 137.44 | 0.6179 | -916.1 | -713.5 | |
| 0.00 | 1.93 | 0.00 | 1.23 | -22.46 | 68.34 | -26.78 | 138.54 | 0.6311 | -795.0 | -631.9 | |
| 0.00 | 1.75 | 0.00 | 1.11 | -21.78 | 68.34 | -26.78 | 137.76 | 0.6247 | -728.0 | -634.0 | |
| 0.00 | 1.32 | 0.00 | 0.87 | -24.99 | 67.47 | -27.65 | 140.43 | 0.6626 | -788.0 | -574.2 | |
| 0.00 | 1.93 | 0.00 | 1.22 | -21.16 | 67.96 | -27.16 | 136.64 | 0.6224 | -542.0 | -488.4 | |
| 0.00 | 1.40 | 0.00 | 0.89 | -21.49 | 67.46 | -27.67 | 136.52 | 0.6301 | -716.0 | -621.8 | |
| 0.00 | 0.79 | 0.00 | 0.56 | -24.38 | 60.86 | -34.27 | 133.92 | 0.7143 | -527.0 | -443.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
