SDO HMI 2014-10-07 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.40 | 50.61 | 3.92 | 30.34 | -20.62 | 72.94 | -21.08 | 143.39 | 0.5620 | 150.4 | 104.3 | |
|
previous
or next observation for the same group /

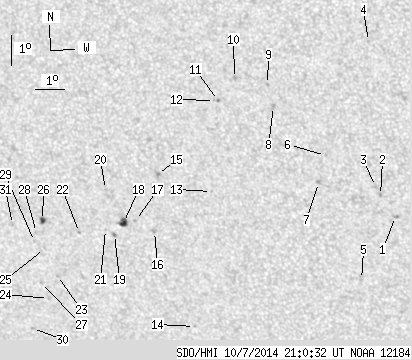

back to the solar disc SDO HMI 2014-10-07 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.37 | 0.00 | 1.35 | -20.64 | 80.70 | -13.31 | 154.49 | 0.5023 | 770.0 | 667.7 | |
| 0.00 | 1.40 | 0.00 | 0.80 | -19.95 | 80.27 | -13.74 | 153.12 | 0.4959 | 822.0 | 666.1 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -19.66 | 80.14 | -13.88 | 152.60 | 0.4929 | 695.0 | 594.2 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -14.91 | 80.28 | -13.74 | 147.48 | 0.4286 | 697.0 | 534.3 | |
| 0.00 | 1.23 | 0.00 | 0.72 | -22.82 | 79.35 | -14.66 | 154.28 | 0.5398 | 65.0 | 130.4 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -18.67 | 78.59 | -15.43 | 149.01 | 0.4914 | 648.0 | 514.0 | |
| 0.00 | 1.75 | 0.00 | 1.01 | -19.58 | 78.27 | -15.75 | 149.47 | 0.5055 | 787.0 | 735.4 | |
| 0.00 | 1.75 | 0.00 | 0.99 | -17.11 | 77.03 | -16.98 | 144.67 | 0.4848 | 843.0 | 720.3 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -16.40 | 76.90 | -17.11 | 143.56 | 0.4773 | 762.0 | 600.6 | |
| 0.00 | 2.11 | 0.00 | 1.19 | -16.24 | 75.84 | -18.18 | 141.69 | 0.4852 | 898.0 | 599.5 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -16.98 | 75.23 | -18.78 | 141.76 | 0.4995 | 886.0 | 803.3 | |
| 0.00 | 1.40 | 0.00 | 0.80 | -16.98 | 75.10 | -18.92 | 141.57 | 0.5008 | 596.0 | 517.2 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -20.00 | 74.65 | -19.37 | 144.58 | 0.5400 | 629.0 | 455.0 | |
| 0.00 | 1.32 | 0.00 | 0.82 | -24.66 | 73.35 | -20.67 | 147.79 | 0.6039 | 517.0 | 434.0 | |
| 0.00 | 3.33 | 0.00 | 1.97 | -19.51 | 72.88 | -21.14 | 141.64 | 0.5498 | -998.0 | -684.2 | |
| 0.00 | 1.84 | 0.00 | 1.11 | -21.43 | 72.49 | -21.53 | 143.36 | 0.5746 | 855.0 | 548.6 | |
| 0.00 | 1.23 | 0.00 | 0.74 | -21.09 | 71.89 | -22.13 | 142.22 | 0.5760 | 545.0 | 423.9 | |
| 4.21 | 7.11 | 2.56 | 4.32 | -21.17 | 71.46 | -22.56 | 141.79 | 0.5807 | 813.8 | 457.7 | |
| 0.00 | 1.84 | 0.00 | 1.13 | -21.60 | 71.07 | -22.95 | 141.81 | 0.5886 | -804.0 | -559.5 | |
| 0.00 | 1.14 | 0.00 | 0.69 | -20.09 | 71.00 | -23.01 | 139.98 | 0.5732 | -673.0 | -480.8 | |
| 0.00 | 0.26 | 0.00 | 0.16 | -21.44 | 70.78 | -23.24 | 141.29 | 0.5894 | 477.0 | 382.0 | |
| 0.00 | 1.14 | 0.00 | 0.70 | -21.59 | 69.84 | -24.18 | 140.37 | 0.5993 | 336.0 | 342.6 | |
| 0.00 | 0.88 | 0.00 | 0.55 | -23.10 | 68.77 | -25.25 | 140.87 | 0.6240 | -730.0 | -606.1 | |
| 0.00 | 1.23 | 0.00 | 0.79 | -23.92 | 68.27 | -25.75 | 141.22 | 0.6364 | -592.0 | -401.7 | |
| 0.00 | 1.05 | 0.00 | 0.66 | -22.19 | 68.48 | -25.54 | 139.55 | 0.6175 | -680.0 | -467.6 | |
| 2.19 | 3.25 | 1.36 | 2.02 | -21.24 | 68.59 | -25.43 | 138.57 | 0.6071 | -909.4 | -750.2 | |
| 0.00 | 1.32 | 0.00 | 0.84 | -23.37 | 68.13 | -25.89 | 140.49 | 0.6322 | -686.0 | -515.3 | |
| 0.00 | 1.23 | 0.00 | 0.77 | -21.66 | 68.30 | -25.72 | 138.74 | 0.6139 | -752.0 | -562.4 | |
| 0.00 | 1.23 | 0.00 | 0.77 | -21.97 | 68.16 | -25.85 | 138.96 | 0.6181 | -518.0 | -389.0 | |
| 0.00 | 1.40 | 0.00 | 0.92 | -25.01 | 67.43 | -26.58 | 141.51 | 0.6540 | -619.0 | -507.7 | |
| 0.00 | 1.58 | 0.00 | 0.99 | -21.43 | 67.48 | -26.54 | 137.61 | 0.6191 | -670.0 | -434.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
