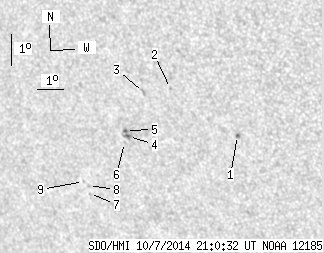

SDO HMI 2014-10-07 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.76 | 14.73 | 1.14 | 9.66 | -13.46 | 57.94 | -36.08 | 119.10 | 0.6574 | 108.0 | -0.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-07 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.44 | 1.75 | 0.27 | 1.10 | -13.24 | 61.74 | -32.27 | 121.53 | 0.6121 | 814.8 | 647.7 | |
| 0.00 | 0.96 | 0.00 | 0.61 | -11.90 | 59.48 | -34.54 | 117.95 | 0.6304 | -674.0 | -539.5 | |
| 0.00 | 2.72 | 0.00 | 1.76 | -12.09 | 58.43 | -35.58 | 117.52 | 0.6439 | 672.0 | 439.3 | |
| 0.79 | 2.81 | 0.52 | 1.85 | -13.53 | 57.62 | -36.40 | 118.98 | 0.6618 | -774.0 | -680.7 | |
| 0.53 | 2.54 | 0.35 | 1.67 | -13.35 | 57.54 | -36.48 | 118.67 | 0.6616 | -764.2 | -570.6 | |
| 0.00 | 1.14 | 0.00 | 0.75 | -13.74 | 57.43 | -36.59 | 119.13 | 0.6651 | -437.0 | -350.2 | |
| 0.00 | 0.79 | 0.00 | 0.54 | -15.49 | 55.71 | -38.31 | 120.31 | 0.6944 | 694.0 | 515.9 | |
| 0.00 | 1.23 | 0.00 | 0.84 | -15.23 | 55.72 | -38.29 | 119.99 | 0.6927 | 680.0 | 554.8 | |
| 0.00 | 0.79 | 0.00 | 0.54 | -15.11 | 55.55 | -38.47 | 119.73 | 0.6940 | 451.0 | 378.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
