SDO HMI 2014-10-07 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.59 | 0.00 | 4.88 | -14.01 | 137.29 | 43.83 | 244.64 | 0.7456 | -375.8 | -388.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-07 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

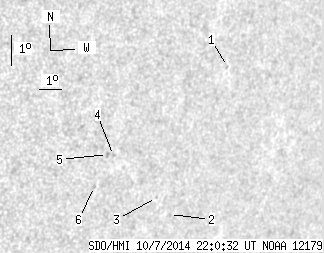

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.53 | 0.00 | 0.41 | -11.03 | 140.63 | 47.16 | 249.85 | 0.7690 | 425.0 | 371.8 | |
| 0.00 | 1.23 | 0.00 | 0.95 | -15.58 | 139.16 | 45.69 | 243.64 | 0.7716 | -334.0 | -254.1 | |
| 0.00 | 0.88 | 0.00 | 0.67 | -14.97 | 138.42 | 44.95 | 244.01 | 0.7616 | -569.0 | -501.8 | |
| 0.00 | 1.23 | 0.00 | 0.89 | -13.46 | 136.20 | 42.73 | 244.79 | 0.7317 | -655.0 | -523.3 | |
| 0.00 | 1.67 | 0.00 | 1.20 | -13.41 | 135.93 | 42.47 | 244.73 | 0.7286 | -606.0 | -545.9 | |
| 0.00 | 1.05 | 0.00 | 0.76 | -14.40 | 135.61 | 42.15 | 243.31 | 0.7298 | -516.0 | -454.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
