SDO HMI 2014-10-07 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 28.78 | 0.00 | 17.75 | 13.38 | 57.39 | -36.08 | 75.55 | 0.5918 | -23.0 | -22.7 | |
|
previous
or next observation for the same group /

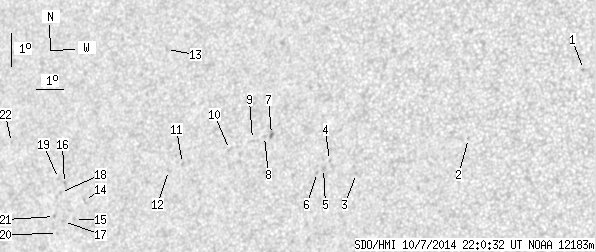

back to the solar disc SDO HMI 2014-10-07 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.72 | 17.01 | 70.81 | -22.66 | 62.37 | 0.4176 | -769.0 | -642.9 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 14.75 | 67.16 | -26.31 | 69.90 | 0.4583 | -737.0 | -639.0 | |
| 0.00 | 1.32 | 0.00 | 0.76 | 13.50 | 63.39 | -30.07 | 74.12 | 0.5086 | -672.0 | -563.4 | |
| 0.00 | 1.05 | 0.00 | 0.61 | 13.84 | 62.38 | -31.09 | 73.82 | 0.5241 | -680.0 | -535.1 | |
| 0.00 | 2.11 | 0.00 | 1.22 | 13.59 | 62.20 | -31.27 | 74.36 | 0.5260 | -823.0 | -619.8 | |
| 0.00 | 1.14 | 0.00 | 0.66 | 13.46 | 62.00 | -31.47 | 74.67 | 0.5285 | -496.0 | -458.0 | |
| 0.00 | 2.81 | 0.00 | 1.67 | 14.50 | 60.15 | -33.32 | 73.34 | 0.5572 | -885.0 | -681.7 | |
| 0.00 | 1.32 | 0.00 | 0.79 | 14.43 | 59.90 | -33.56 | 73.55 | 0.5604 | -607.0 | -502.9 | |
| 0.00 | 0.53 | 0.00 | 0.32 | 14.31 | 59.48 | -33.99 | 73.89 | 0.5660 | -390.0 | -437.5 | |
| 0.00 | 1.67 | 0.00 | 1.01 | 13.96 | 58.67 | -34.79 | 74.72 | 0.5762 | -513.0 | -409.6 | |
| 0.00 | 1.14 | 0.00 | 0.70 | 13.43 | 56.98 | -36.49 | 76.02 | 0.5983 | 756.0 | 586.8 | |
| 0.00 | 0.96 | 0.00 | 0.60 | 13.19 | 56.48 | -36.98 | 76.52 | 0.6045 | 626.0 | 554.5 | |
| 0.00 | 1.14 | 0.00 | 0.72 | 16.82 | 55.66 | -37.80 | 70.86 | 0.6233 | -636.0 | -541.7 | |
| 0.00 | 2.19 | 0.00 | 1.42 | 12.07 | 53.37 | -40.09 | 78.80 | 0.6443 | 628.0 | 598.9 | |
| 0.00 | 1.14 | 0.00 | 0.74 | 11.47 | 53.08 | -40.39 | 79.75 | 0.6476 | 623.0 | 540.8 | |
| 0.00 | 1.49 | 0.00 | 0.98 | 12.52 | 52.48 | -40.98 | 78.21 | 0.6564 | 676.0 | 603.8 | |
| 0.00 | 1.58 | 0.00 | 1.03 | 11.38 | 52.65 | -40.82 | 79.93 | 0.6531 | 608.0 | 509.4 | |
| 0.00 | 1.05 | 0.00 | 0.69 | 12.24 | 52.37 | -41.09 | 78.65 | 0.6575 | 674.0 | 455.3 | |
| 0.00 | 1.40 | 0.00 | 0.92 | 12.65 | 52.21 | -41.25 | 78.04 | 0.6600 | 581.0 | 436.0 | |
| 0.00 | 0.79 | 0.00 | 0.52 | 11.01 | 52.47 | -41.00 | 80.52 | 0.6552 | 453.0 | 424.6 | |
| 0.00 | 0.96 | 0.00 | 0.63 | 11.51 | 52.26 | -41.20 | 79.78 | 0.6582 | 593.0 | 494.5 | |
| 0.00 | 0.88 | 0.00 | 0.60 | 13.59 | 50.05 | -43.41 | 76.92 | 0.6881 | 485.0 | 459.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
