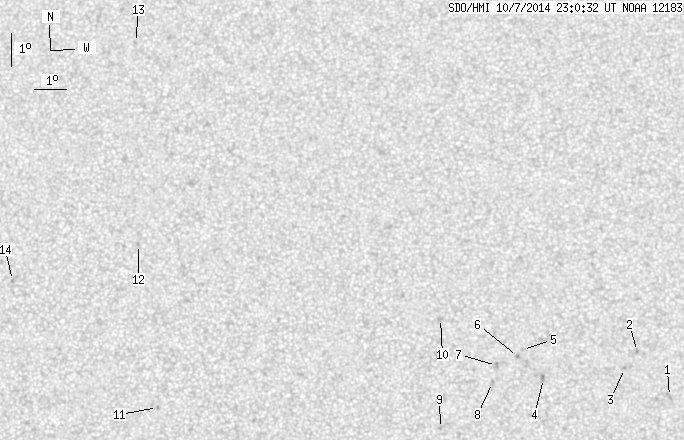

SDO HMI 2014-10-07 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 26.14 | 0.00 | 13.11 | 11.17 | 96.68 | 3.77 | 243.01 | 0.1497 | -649.5 | -576.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-07 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.42 | 0.00 | 1.73 | 9.36 | 103.65 | 10.74 | 286.40 | 0.1925 | -876.0 | -707.7 | |
| 0.00 | 1.49 | 0.00 | 0.75 | 10.73 | 102.71 | 9.79 | 294.92 | 0.1851 | -844.0 | -667.2 | |
| 0.00 | 1.40 | 0.00 | 0.71 | 10.23 | 102.29 | 9.38 | 293.21 | 0.1752 | -1040.0 | -743.1 | |
| 0.00 | 2.11 | 0.00 | 1.05 | 9.97 | 99.79 | 6.88 | 298.32 | 0.1346 | -973.0 | -844.3 | |
| 0.00 | 1.23 | 0.00 | 0.61 | 10.85 | 99.17 | 6.26 | 306.35 | 0.1335 | -733.0 | -463.7 | |
| 0.00 | 2.11 | 0.00 | 1.05 | 10.64 | 99.01 | 6.10 | 305.73 | 0.1292 | -1083.0 | -861.2 | |
| 0.00 | 2.37 | 0.00 | 1.18 | 10.38 | 98.36 | 5.45 | 307.00 | 0.1175 | -752.0 | -713.3 | |
| 0.00 | 1.93 | 0.00 | 0.96 | 9.87 | 98.23 | 5.32 | 303.97 | 0.1106 | -946.0 | -739.6 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 8.51 | 96.63 | 3.72 | 300.33 | 0.0746 | -919.0 | -779.6 | |
| 0.00 | 2.98 | 0.00 | 1.49 | 11.81 | 96.67 | 3.76 | 325.95 | 0.1152 | -728.0 | -655.8 | |
| 0.00 | 1.32 | 0.00 | 0.65 | 9.14 | 88.05 | -4.87 | 59.84 | 0.0973 | -975.0 | -809.7 | |
| 0.00 | 1.49 | 0.00 | 0.75 | 14.04 | 87.38 | -5.54 | 34.96 | 0.1641 | 777.0 | 631.7 | |
| 0.00 | 1.40 | 0.00 | 0.72 | 20.19 | 87.10 | -5.81 | 21.65 | 0.2588 | 866.0 | 579.0 | |
| 0.00 | 1.75 | 0.00 | 0.89 | 12.90 | 83.50 | -9.42 | 54.17 | 0.1976 | -867.0 | -700.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
