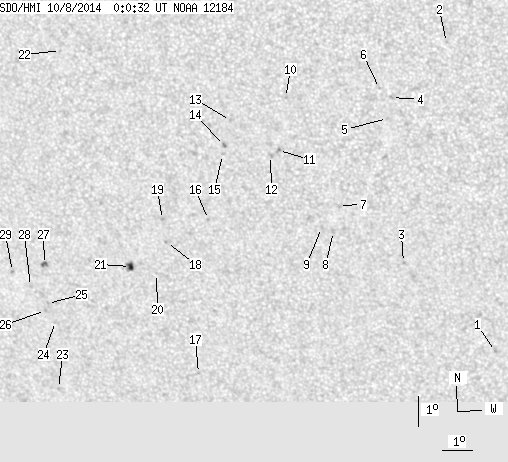

SDO HMI 2014-10-08 00:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.56 | 41.96 | 2.75 | 24.50 | -19.67 | 74.24 | -18.12 | 146.50 | 0.5262 | 289.5 | 206.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-08 00:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.76 | -23.66 | 83.61 | -8.75 | 164.41 | 0.5204 | 841.0 | 637.5 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -13.45 | 82.61 | -9.75 | 153.99 | 0.3772 | 760.0 | 528.2 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -20.68 | 80.81 | -11.55 | 157.51 | 0.4919 | 934.0 | 749.5 | |
| 0.00 | 1.58 | 0.00 | 0.86 | -15.25 | 80.79 | -11.57 | 152.15 | 0.4160 | 773.0 | 587.9 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -15.93 | 80.62 | -11.74 | 152.59 | 0.4268 | 731.0 | 511.7 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -14.97 | 80.43 | -11.93 | 151.08 | 0.4148 | 797.0 | 552.6 | |
| 0.00 | 0.70 | 0.00 | 0.40 | -18.82 | 78.84 | -13.52 | 152.37 | 0.4792 | 275.0 | 264.2 | |
| 0.00 | 2.72 | 0.00 | 1.55 | -19.70 | 78.60 | -13.76 | 152.83 | 0.4925 | 623.0 | 449.9 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -19.57 | 78.22 | -14.14 | 152.07 | 0.4935 | 785.0 | 630.7 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -15.34 | 77.40 | -14.96 | 145.79 | 0.4447 | 773.0 | 550.4 | |
| 0.00 | 1.93 | 0.00 | 1.08 | -17.07 | 77.04 | -15.33 | 147.33 | 0.4700 | 898.0 | 730.5 | |
| 0.00 | 2.46 | 0.00 | 1.38 | -17.24 | 76.76 | -15.60 | 147.07 | 0.4744 | 785.0 | 579.1 | |
| 0.00 | 1.23 | 0.00 | 0.69 | -16.14 | 75.56 | -16.81 | 143.71 | 0.4712 | 725.0 | 588.7 | |
| 0.00 | 1.84 | 0.00 | 1.04 | -16.96 | 75.28 | -17.08 | 144.33 | 0.4837 | 906.0 | 737.2 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -17.26 | 75.19 | -17.17 | 144.55 | 0.4881 | 653.0 | 579.3 | |
| 0.00 | 1.23 | 0.00 | 0.71 | -19.42 | 74.50 | -17.87 | 146.07 | 0.5204 | 607.0 | 505.7 | |
| 0.00 | 1.14 | 0.00 | 0.70 | -24.71 | 73.43 | -18.93 | 150.01 | 0.5919 | 713.0 | 586.6 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -20.25 | 72.98 | -19.38 | 144.84 | 0.5428 | -783.0 | -668.4 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -19.48 | 72.95 | -19.42 | 143.92 | 0.5342 | -951.0 | -806.7 | |
| 0.00 | 0.26 | 0.00 | 0.16 | -21.31 | 72.50 | -19.87 | 145.36 | 0.5592 | 744.0 | 509.3 | |
| 3.16 | 5.26 | 1.89 | 3.15 | -21.10 | 71.63 | -20.73 | 144.01 | 0.5641 | 799.4 | 589.6 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -14.09 | 70.15 | -22.21 | 132.97 | 0.5031 | 52.0 | 157.3 | |
| 0.00 | 1.32 | 0.00 | 0.84 | -25.45 | 68.31 | -24.05 | 144.63 | 0.6382 | -658.0 | -522.4 | |
| 0.00 | 1.49 | 0.00 | 0.93 | -23.11 | 68.67 | -23.69 | 142.61 | 0.6107 | -305.0 | -445.0 | |
| 0.00 | 0.88 | 0.00 | 0.55 | -22.50 | 68.50 | -23.86 | 141.75 | 0.6058 | -793.0 | -662.8 | |
| 0.00 | 0.97 | 0.00 | 0.60 | -22.74 | 68.39 | -23.97 | 141.89 | 0.6094 | -650.0 | -542.2 | |
| 1.40 | 3.16 | 0.86 | 1.94 | -21.17 | 68.64 | -23.73 | 140.40 | 0.5909 | -909.4 | -771.0 | |
| 0.00 | 1.32 | 0.00 | 0.82 | -21.94 | 68.00 | -24.36 | 140.56 | 0.6045 | -606.0 | -516.6 | |
| 0.00 | 1.23 | 0.00 | 0.76 | -21.46 | 67.45 | -24.91 | 139.40 | 0.6045 | -745.0 | -594.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
