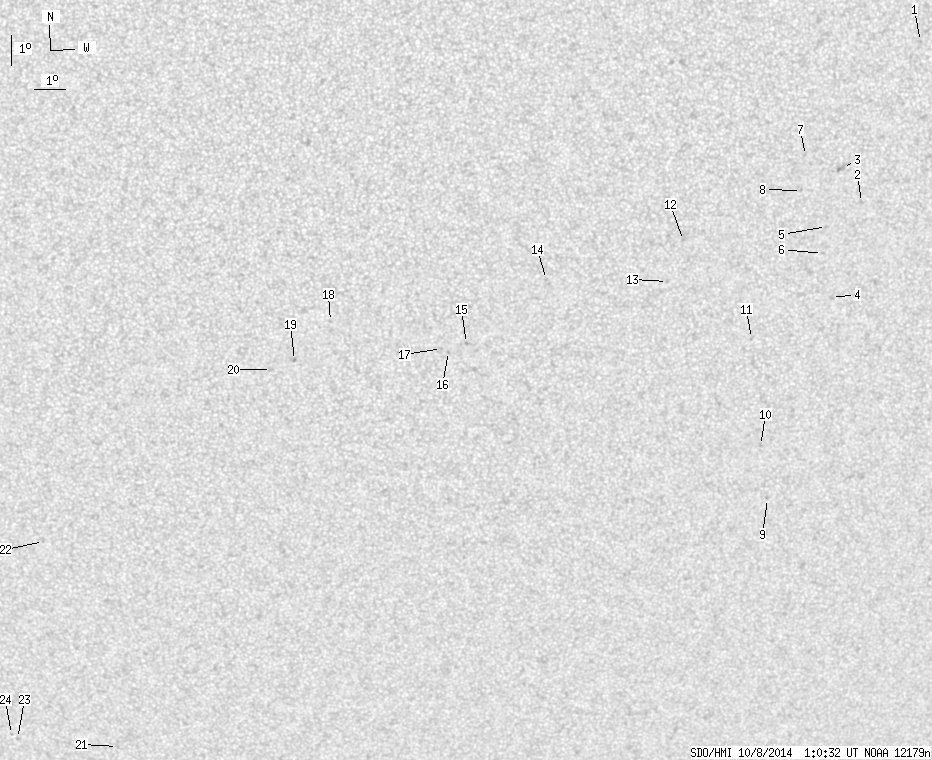

SDO HMI 2014-10-08 01:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 33.93 | 0.00 | 19.34 | -19.32 | 102.10 | 10.29 | 202.92 | 0.4930 | 90.8 | 96.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-08 01:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.48 | -9.56 | 112.82 | 21.01 | 232.93 | 0.4450 | 616.0 | 473.9 | |
| 0.00 | 1.67 | 0.00 | 0.94 | -14.58 | 111.28 | 19.47 | 222.56 | 0.4789 | 779.0 | 589.8 | |
| 0.00 | 5.09 | 0.00 | 2.83 | -13.43 | 110.56 | 18.75 | 223.20 | 0.4587 | 784.0 | 544.4 | |
| 0.00 | 2.11 | 0.00 | 1.21 | -17.63 | 110.60 | 18.78 | 217.43 | 0.5070 | 865.0 | 646.0 | |
| 0.00 | 1.40 | 0.00 | 0.79 | -15.31 | 110.20 | 18.39 | 219.91 | 0.4762 | 746.0 | 642.8 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -16.18 | 110.15 | 18.34 | 218.65 | 0.4859 | 717.0 | 509.4 | |
| 0.00 | 0.35 | 0.00 | 0.19 | -13.00 | 109.33 | 17.52 | 221.93 | 0.4409 | 777.0 | 672.2 | |
| 0.00 | 1.32 | 0.00 | 0.73 | -14.12 | 109.29 | 17.48 | 220.17 | 0.4533 | 613.0 | 526.6 | |
| 0.00 | 1.32 | 0.00 | 0.80 | -24.35 | 109.27 | 17.46 | 208.37 | 0.5774 | 641.0 | 525.1 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -22.51 | 108.79 | 16.97 | 209.41 | 0.5513 | 799.0 | 719.6 | |
| 0.00 | 1.76 | 0.00 | 1.00 | -18.88 | 108.08 | 16.27 | 212.11 | 0.5006 | 611.0 | 568.0 | |
| 0.00 | 0.35 | 0.00 | 0.19 | -15.60 | 105.60 | 13.78 | 211.74 | 0.4381 | 716.0 | 587.0 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -16.92 | 105.17 | 13.36 | 209.40 | 0.4523 | 650.0 | 511.9 | |
| 0.00 | 1.23 | 0.00 | 0.67 | -16.76 | 101.30 | 9.49 | 201.97 | 0.4237 | -643.0 | -412.0 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -18.82 | 98.85 | 7.04 | 195.27 | 0.4421 | -879.0 | -708.2 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -19.07 | 98.28 | 6.47 | 193.95 | 0.4438 | -606.0 | -568.9 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -18.97 | 98.06 | 6.25 | 193.54 | 0.4414 | -680.0 | -504.5 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -18.04 | 94.52 | 2.70 | 186.20 | 0.4173 | -843.0 | -655.4 | |
| 0.00 | 1.76 | 0.00 | 0.97 | -19.33 | 93.39 | 1.58 | 183.44 | 0.4361 | -773.0 | -679.0 | |
| 0.00 | 2.46 | 0.00 | 1.35 | -19.62 | 92.66 | 0.85 | 181.83 | 0.4403 | -843.0 | -642.9 | |
| 0.00 | 1.58 | 0.00 | 1.02 | -33.12 | 87.24 | -4.58 | 174.00 | 0.6414 | -595.0 | -471.9 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -25.56 | 85.10 | -6.71 | 168.72 | 0.5406 | -110.0 | -159.5 | |
| 0.00 | 1.32 | 0.00 | 0.85 | -32.85 | 83.66 | -8.15 | 169.32 | 0.6448 | -571.0 | -399.2 | |
| 0.00 | 0.97 | 0.00 | 0.62 | -32.70 | 83.46 | -8.35 | 169.00 | 0.6433 | -591.0 | -466.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
