SDO HMI 2014-10-08 02:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.42 | 0.00 | 10.69 | -14.63 | 56.59 | -34.67 | 121.76 | 0.6472 | 162.8 | -23.1 | |
|
previous
or next observation for the same group /

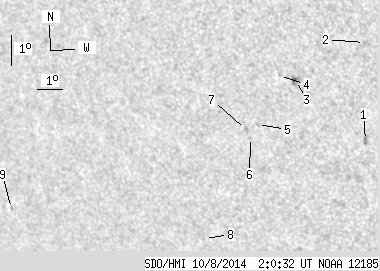

back to the solar disc SDO HMI 2014-10-08 02:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.98 | 0.00 | 1.87 | -15.17 | 60.05 | -31.22 | 125.09 | 0.6136 | 772.0 | 637.2 | |
| 0.00 | 1.14 | 0.00 | 0.70 | -12.03 | 60.47 | -30.79 | 120.95 | 0.5859 | 697.0 | 560.3 | |
| 0.00 | 5.88 | 0.00 | 3.73 | -13.39 | 57.81 | -33.45 | 120.83 | 0.6268 | -860.0 | -677.7 | |
| 0.00 | 0.88 | 0.00 | 0.56 | -13.27 | 57.20 | -34.07 | 120.21 | 0.6332 | -636.0 | -499.9 | |
| 0.00 | 1.32 | 0.00 | 0.86 | -14.90 | 56.08 | -35.18 | 121.64 | 0.6563 | 658.0 | 534.9 | |
| 0.00 | 0.88 | 0.00 | 0.58 | -15.34 | 55.73 | -35.53 | 121.98 | 0.6630 | 330.0 | 416.9 | |
| 0.00 | 1.67 | 0.00 | 1.10 | -15.09 | 55.59 | -35.68 | 121.55 | 0.6630 | 617.0 | 480.1 | |
| 0.00 | 0.53 | 0.00 | 0.37 | -18.80 | 53.11 | -38.15 | 124.56 | 0.7124 | 360.0 | 274.8 | |
| 0.00 | 1.14 | 0.00 | 0.92 | -18.45 | 44.94 | -46.32 | 119.44 | 0.7900 | -473.0 | -382.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
