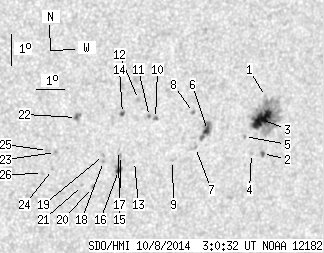

SDO HMI 2014-10-08 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.82 | 122.70 | 17.41 | 76.46 | -14.43 | 121.81 | 31.10 | 235.72 | 0.6070 | 266.1 | 185.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-08 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.72 | -13.49 | 123.45 | 32.74 | 238.49 | 0.6191 | 147.0 | 115.6 | |
| 1.05 | 2.37 | 0.67 | 1.51 | -15.32 | 123.64 | 32.93 | 236.10 | 0.6339 | 752.4 | 617.5 | |
| 18.52 | 69.86 | 11.71 | 44.26 | -14.22 | 123.42 | 32.71 | 237.44 | 0.6237 | 1002.8 | 315.8 | |
| 0.00 | 1.49 | 0.00 | 0.95 | -15.30 | 123.23 | 32.52 | 235.81 | 0.6291 | 466.0 | 404.6 | |
| 0.00 | 1.40 | 0.00 | 0.89 | -14.73 | 122.88 | 32.16 | 236.30 | 0.6211 | 761.0 | 646.4 | |
| 3.86 | 12.55 | 2.39 | 7.77 | -14.45 | 121.49 | 30.77 | 235.53 | 0.6032 | 887.4 | 698.6 | |
| 0.00 | 1.14 | 0.00 | 0.71 | -14.98 | 121.13 | 30.42 | 234.49 | 0.6032 | 744.0 | 647.5 | |
| 0.00 | 1.40 | 0.00 | 0.86 | -13.84 | 120.89 | 30.18 | 235.88 | 0.5918 | 872.0 | 769.5 | |
| 0.00 | 0.97 | 0.00 | 0.60 | -15.35 | 120.37 | 29.65 | 233.29 | 0.5974 | 692.0 | 547.7 | |
| 0.53 | 2.02 | 0.32 | 1.22 | -13.96 | 119.56 | 28.85 | 234.51 | 0.5772 | 800.5 | 655.3 | |
| 0.00 | 1.49 | 0.00 | 0.90 | -13.88 | 119.34 | 28.63 | 234.42 | 0.5741 | 835.0 | 699.2 | |
| 0.00 | 1.49 | 0.00 | 0.89 | -13.32 | 118.88 | 28.17 | 234.81 | 0.5642 | 703.0 | 451.5 | |
| 0.00 | 0.61 | 0.00 | 0.37 | -15.30 | 119.01 | 28.30 | 232.07 | 0.5819 | -437.0 | -402.9 | |
| 1.05 | 2.02 | 0.63 | 1.21 | -13.73 | 118.37 | 27.66 | 233.71 | 0.5616 | -685.2 | -500.5 | |
| 0.00 | 1.40 | 0.00 | 0.85 | -15.08 | 118.48 | 27.77 | 231.87 | 0.5741 | -833.0 | -715.8 | |
| 2.11 | 6.58 | 1.28 | 3.99 | -15.56 | 118.48 | 27.77 | 231.19 | 0.5782 | -785.7 | -659.2 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -14.91 | 118.39 | 27.68 | 232.01 | 0.5717 | -385.0 | -357.5 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -15.24 | 117.91 | 27.20 | 231.07 | 0.5691 | -851.0 | -719.5 | |
| 0.00 | 1.23 | 0.00 | 0.74 | -15.05 | 117.88 | 27.17 | 231.31 | 0.5671 | -766.0 | -524.8 | |
| 0.00 | 1.14 | 0.00 | 0.69 | -16.07 | 117.64 | 26.93 | 229.64 | 0.5733 | -797.0 | -625.6 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -15.98 | 117.28 | 26.57 | 229.38 | 0.5687 | -790.0 | -594.3 | |
| 0.70 | 3.25 | 0.41 | 1.91 | -13.77 | 116.78 | 26.07 | 232.02 | 0.5436 | -931.5 | -719.8 | |
| 0.00 | 1.76 | 0.00 | 1.04 | -14.86 | 116.20 | 25.48 | 229.79 | 0.5466 | -874.0 | -668.3 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -15.41 | 116.16 | 25.45 | 228.98 | 0.5512 | -628.0 | -480.6 | |
| 0.00 | 2.11 | 0.00 | 1.24 | -14.78 | 115.91 | 25.20 | 229.59 | 0.5428 | -687.0 | -540.8 | |
| 0.00 | 1.49 | 0.00 | 0.88 | -15.52 | 115.83 | 25.12 | 228.45 | 0.5487 | -626.0 | -467.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
