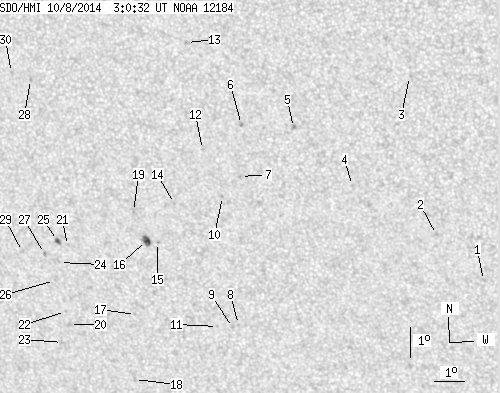

SDO HMI 2014-10-08 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.45 | 42.22 | 3.24 | 24.89 | -20.77 | 72.44 | -18.28 | 147.27 | 0.5412 | 122.4 | 72.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-08 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.76 | 0.00 | 1.00 | -22.02 | 82.86 | -7.85 | 165.04 | 0.4928 | 86.0 | 101.5 | |
| 0.00 | 1.32 | 0.00 | 0.74 | -20.48 | 81.42 | -9.29 | 161.43 | 0.4768 | 891.0 | 674.9 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -15.30 | 80.85 | -9.86 | 155.79 | 0.4046 | 497.0 | 508.9 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -18.90 | 78.81 | -11.90 | 155.31 | 0.4691 | 754.0 | 684.1 | |
| 0.00 | 2.46 | 0.00 | 1.37 | -17.04 | 77.04 | -13.67 | 150.17 | 0.4561 | 860.0 | 730.6 | |
| 0.00 | 1.67 | 0.00 | 0.93 | -16.99 | 75.36 | -15.35 | 147.18 | 0.4689 | 971.0 | 744.4 | |
| 0.00 | 1.49 | 0.00 | 0.85 | -18.70 | 75.18 | -15.54 | 148.85 | 0.4924 | 665.0 | 541.8 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -23.72 | 74.55 | -16.17 | 152.86 | 0.5609 | 574.0 | 457.8 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -23.83 | 74.33 | -16.39 | 152.64 | 0.5637 | 673.0 | 511.7 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -19.38 | 74.51 | -16.20 | 148.54 | 0.5063 | 719.0 | 542.2 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -23.82 | 73.82 | -16.90 | 151.91 | 0.5669 | 588.0 | 468.3 | |
| 0.00 | 0.26 | 0.00 | 0.15 | -17.85 | 74.01 | -16.70 | 146.00 | 0.4912 | 664.0 | 642.7 | |
| 0.00 | 1.32 | 0.00 | 0.73 | -14.39 | 73.80 | -16.92 | 141.12 | 0.4509 | 655.0 | 567.3 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -19.67 | 72.89 | -17.83 | 146.39 | 0.5229 | -709.0 | -555.9 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -21.00 | 72.15 | -18.56 | 146.80 | 0.5449 | 525.0 | 393.5 | |
| 4.13 | 6.76 | 2.44 | 3.99 | -20.95 | 71.78 | -18.93 | 146.24 | 0.5472 | 893.7 | 583.5 | |
| 0.00 | 0.97 | 0.00 | 0.59 | -23.50 | 71.04 | -19.68 | 147.88 | 0.5830 | -576.0 | -488.1 | |
| 0.00 | 1.58 | 0.00 | 0.99 | -25.79 | 70.62 | -20.10 | 149.53 | 0.6125 | -738.0 | -499.9 | |
| 0.00 | 1.23 | 0.00 | 0.72 | -19.99 | 71.47 | -19.24 | 144.73 | 0.5385 | -695.0 | -614.6 | |
| 0.00 | 2.11 | 0.00 | 1.31 | -23.95 | 68.65 | -22.07 | 145.37 | 0.6064 | -706.0 | -556.5 | |
| 0.00 | 0.35 | 0.00 | 0.21 | -21.23 | 69.04 | -21.68 | 142.93 | 0.5734 | -614.0 | -515.2 | |
| 0.00 | 0.61 | 0.00 | 0.38 | -23.50 | 68.58 | -22.13 | 144.84 | 0.6020 | -693.0 | -543.1 | |
| 0.00 | 1.93 | 0.00 | 1.21 | -24.59 | 68.28 | -22.44 | 145.59 | 0.6163 | -520.0 | -428.5 | |
| 0.00 | 0.35 | 0.00 | 0.21 | -21.82 | 68.66 | -22.05 | 143.13 | 0.5830 | -697.0 | -611.0 | |
| 1.32 | 3.16 | 0.80 | 1.91 | -21.07 | 68.71 | -22.00 | 142.35 | 0.5745 | -872.3 | -624.1 | |
| 0.00 | 0.61 | 0.00 | 0.38 | -22.44 | 68.38 | -22.33 | 143.47 | 0.5922 | -752.0 | -685.3 | |
| 0.00 | 1.49 | 0.00 | 0.91 | -21.54 | 68.19 | -22.53 | 142.23 | 0.5840 | -809.0 | -620.7 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -15.78 | 68.52 | -22.19 | 135.42 | 0.5199 | 718.0 | 514.3 | |
| 0.00 | 1.40 | 0.00 | 0.86 | -21.50 | 67.42 | -23.29 | 141.28 | 0.5904 | -700.0 | -501.8 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -15.58 | 67.90 | -22.81 | 134.36 | 0.5244 | 709.0 | 575.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
