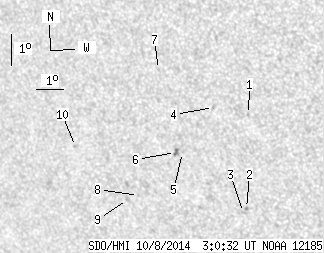

SDO HMI 2014-10-08 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.97 | 14.74 | 0.61 | 9.34 | -13.78 | 57.69 | -33.02 | 121.73 | 0.6243 | 152.8 | 73.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-08 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.69 | -12.06 | 60.53 | -30.18 | 121.50 | 0.5788 | 575.0 | 524.2 | |
| 0.00 | 0.97 | 0.00 | 0.60 | -15.08 | 60.02 | -30.69 | 125.42 | 0.6070 | 867.0 | 726.0 | |
| 0.00 | 1.84 | 0.00 | 1.15 | -15.21 | 59.89 | -30.82 | 125.49 | 0.6095 | 610.0 | 558.2 | |
| 0.00 | 1.49 | 0.00 | 0.92 | -11.91 | 59.30 | -31.41 | 120.27 | 0.5927 | -604.0 | -507.9 | |
| 0.00 | 0.61 | 0.00 | 0.39 | -13.42 | 57.96 | -32.75 | 121.39 | 0.6188 | -706.0 | -554.0 | |
| 0.97 | 3.34 | 0.61 | 2.10 | -13.43 | 57.70 | -33.01 | 121.22 | 0.6219 | -738.5 | -611.3 | |
| 0.00 | 0.70 | 0.00 | 0.44 | -10.83 | 57.45 | -33.27 | 117.27 | 0.6083 | 568.0 | 471.5 | |
| 0.00 | 0.79 | 0.00 | 0.51 | -14.91 | 56.07 | -34.65 | 122.03 | 0.6503 | 617.0 | 519.6 | |
| 0.00 | 2.72 | 0.00 | 1.78 | -15.06 | 55.62 | -35.09 | 121.91 | 0.6563 | 667.0 | 407.2 | |
| 0.00 | 1.14 | 0.00 | 0.76 | -13.49 | 53.92 | -36.79 | 118.64 | 0.6658 | -675.0 | -536.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
