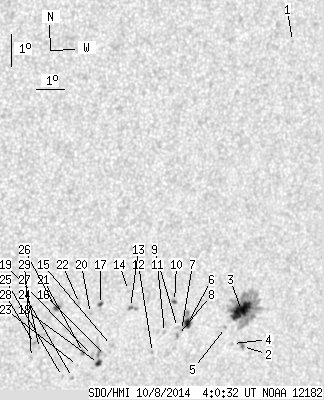

SDO HMI 2014-10-08 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.64 | 137.72 | 19.26 | 86.33 | -14.43 | 121.87 | 31.70 | 236.25 | 0.6139 | 322.3 | 183.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-08 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.43 | -5.90 | 124.36 | 34.19 | 250.93 | 0.5937 | 553.0 | 479.5 | |
| 0.53 | 2.98 | 0.34 | 1.92 | -15.40 | 123.71 | 33.54 | 236.49 | 0.6413 | 716.5 | 601.6 | |
| 19.75 | 77.24 | 12.57 | 49.23 | -14.23 | 123.47 | 33.30 | 237.89 | 0.6306 | 994.6 | 313.2 | |
| 0.00 | 1.23 | 0.00 | 0.79 | -15.28 | 123.31 | 33.15 | 236.34 | 0.6360 | 585.0 | 434.4 | |
| 0.00 | 1.14 | 0.00 | 0.72 | -14.74 | 122.96 | 32.80 | 236.80 | 0.6283 | 822.0 | 580.8 | |
| 4.39 | 11.94 | 2.74 | 7.44 | -14.53 | 121.53 | 31.37 | 235.94 | 0.6105 | 887.5 | 720.5 | |
| 0.00 | 0.97 | 0.00 | 0.60 | -14.74 | 121.35 | 31.18 | 235.49 | 0.6100 | 889.0 | 742.4 | |
| 0.00 | 1.67 | 0.00 | 1.04 | -14.89 | 121.23 | 31.06 | 235.17 | 0.6097 | 886.0 | 725.7 | |
| 0.00 | 1.23 | 0.00 | 0.76 | -14.63 | 121.19 | 31.02 | 235.50 | 0.6074 | 608.0 | 474.8 | |
| 0.79 | 2.11 | 0.49 | 1.30 | -13.79 | 120.95 | 30.79 | 236.49 | 0.5984 | 786.3 | 661.3 | |
| 0.00 | 1.58 | 0.00 | 0.98 | -14.77 | 120.74 | 30.57 | 234.92 | 0.6032 | 763.0 | 539.9 | |
| 0.00 | 1.14 | 0.00 | 0.71 | -15.39 | 120.40 | 30.24 | 233.77 | 0.6042 | 718.0 | 494.1 | |
| 0.61 | 3.69 | 0.37 | 2.24 | -13.89 | 119.39 | 29.23 | 234.97 | 0.5811 | 851.7 | 749.2 | |
| 0.00 | 0.70 | 0.00 | 0.42 | -13.34 | 119.25 | 29.09 | 235.64 | 0.5752 | 599.0 | 518.2 | |
| 0.00 | 1.93 | 0.00 | 1.18 | -15.07 | 118.89 | 28.73 | 232.81 | 0.5848 | -643.0 | -468.0 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -15.39 | 118.72 | 28.56 | 232.22 | 0.5854 | -486.0 | -427.9 | |
| 0.97 | 2.46 | 0.58 | 1.48 | -13.73 | 118.32 | 28.15 | 234.19 | 0.5673 | -647.4 | -475.8 | |
| 2.37 | 9.04 | 1.44 | 5.50 | -15.63 | 118.51 | 28.35 | 231.67 | 0.5851 | -748.7 | -682.0 | |
| 0.00 | 2.02 | 0.00 | 1.23 | -15.36 | 118.26 | 28.10 | 231.80 | 0.5801 | -698.0 | -534.7 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -14.00 | 118.00 | 27.84 | 233.49 | 0.5659 | -740.0 | -624.4 | |
| 0.00 | 1.93 | 0.00 | 1.17 | -15.24 | 117.93 | 27.76 | 231.64 | 0.5754 | -835.0 | -740.2 | |
| 0.00 | 0.70 | 0.00 | 0.42 | -13.66 | 117.57 | 27.41 | 233.58 | 0.5581 | -759.0 | -625.4 | |
| 0.00 | 0.26 | 0.00 | 0.16 | -15.65 | 117.77 | 27.61 | 230.91 | 0.5772 | -665.0 | -525.0 | |
| 0.00 | 0.97 | 0.00 | 0.59 | -16.04 | 117.66 | 27.49 | 230.26 | 0.5791 | -743.0 | -663.5 | |
| 0.00 | 1.14 | 0.00 | 0.69 | -15.98 | 117.30 | 27.13 | 229.97 | 0.5748 | -735.0 | -591.0 | |
| 1.23 | 3.77 | 0.73 | 2.24 | -13.78 | 116.79 | 26.63 | 232.61 | 0.5500 | -894.9 | -599.0 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -15.03 | 116.36 | 26.20 | 230.33 | 0.5561 | -623.0 | -505.0 | |
| 0.00 | 1.40 | 0.00 | 0.83 | -14.86 | 116.17 | 26.00 | 230.37 | 0.5524 | -934.0 | -709.9 | |
| 0.00 | 1.32 | 0.00 | 0.78 | -15.31 | 116.12 | 25.96 | 229.68 | 0.5559 | -745.0 | -532.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
