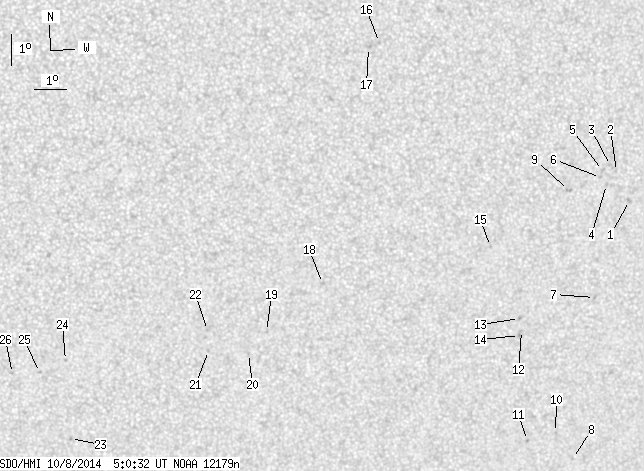

SDO HMI 2014-10-08 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 34.58 | 0.00 | 19.56 | -16.65 | 105.48 | 15.86 | 213.64 | 0.4794 | 64.0 | 151.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-08 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.37 | 0.00 | 1.36 | -14.56 | 111.28 | 21.66 | 225.64 | 0.5017 | 745.0 | 568.2 | |
| 0.00 | 0.53 | 0.00 | 0.30 | -13.62 | 110.75 | 21.14 | 226.37 | 0.4862 | 639.0 | 519.2 | |
| 0.00 | 2.19 | 0.00 | 1.24 | -13.42 | 110.54 | 20.92 | 226.38 | 0.4818 | 871.0 | 700.9 | |
| 0.00 | 1.76 | 0.00 | 0.99 | -14.02 | 110.46 | 20.84 | 225.36 | 0.4872 | 557.0 | 457.5 | |
| 0.00 | 2.28 | 0.00 | 1.29 | -13.56 | 110.29 | 20.67 | 225.81 | 0.4805 | 767.0 | 576.7 | |
| 0.00 | 1.49 | 0.00 | 0.84 | -13.79 | 110.24 | 20.62 | 225.41 | 0.4824 | 855.0 | 637.6 | |
| 0.00 | 1.32 | 0.00 | 0.77 | -17.67 | 110.45 | 20.84 | 220.27 | 0.5264 | 688.0 | 605.3 | |
| 0.00 | 1.40 | 0.00 | 0.86 | -23.06 | 110.46 | 20.84 | 214.05 | 0.5868 | 90.0 | 215.2 | |
| 0.00 | 2.63 | 0.00 | 1.48 | -14.16 | 109.22 | 19.61 | 223.40 | 0.4755 | 740.0 | 609.0 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -22.14 | 109.73 | 20.11 | 214.08 | 0.5705 | 508.0 | 437.6 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -22.38 | 108.80 | 19.18 | 212.61 | 0.5659 | 637.0 | 551.7 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -18.66 | 108.12 | 18.51 | 215.78 | 0.5164 | 554.0 | 459.8 | |
| 0.00 | 1.23 | 0.00 | 0.71 | -18.26 | 108.01 | 18.39 | 216.10 | 0.5107 | 745.0 | 624.9 | |
| 0.00 | 1.40 | 0.00 | 0.81 | -18.82 | 108.07 | 18.46 | 215.51 | 0.5179 | 796.0 | 631.9 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -15.87 | 106.82 | 17.20 | 217.32 | 0.4713 | 667.0 | 555.2 | |
| 0.00 | 1.32 | 0.00 | 0.70 | -9.28 | 102.89 | 13.27 | 220.37 | 0.3513 | -826.0 | -597.5 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -9.43 | 102.55 | 12.93 | 219.37 | 0.3496 | -450.0 | -448.6 | |
| 0.00 | 1.58 | 0.00 | 0.87 | -16.91 | 101.47 | 11.86 | 206.61 | 0.4408 | -834.0 | -646.1 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -18.44 | 99.77 | 10.16 | 201.84 | 0.4517 | -568.0 | -510.3 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -19.16 | 99.24 | 9.62 | 200.20 | 0.4591 | -810.0 | -596.6 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -19.03 | 97.95 | 8.33 | 197.77 | 0.4507 | -785.0 | -667.9 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -18.37 | 97.88 | 8.27 | 198.12 | 0.4406 | -831.0 | -626.8 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -21.93 | 93.62 | 4.00 | 187.79 | 0.4798 | -824.0 | -676.2 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -19.30 | 93.39 | 3.78 | 188.18 | 0.4389 | -810.0 | -625.9 | |
| 0.00 | 1.40 | 0.00 | 0.78 | -19.70 | 92.57 | 2.96 | 186.32 | 0.4434 | -724.0 | -595.6 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -19.72 | 91.71 | 2.10 | 184.48 | 0.4425 | -732.0 | -521.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
