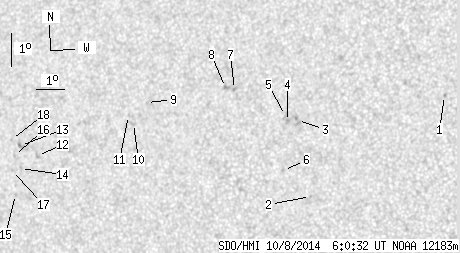

SDO HMI 2014-10-08 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 28.80 | 0.00 | 16.81 | 13.00 | 57.72 | -31.35 | 75.02 | 0.5252 | 42.7 | -8.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-08 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.66 | 14.62 | 67.39 | -21.68 | 67.02 | 0.3900 | -895.0 | -684.1 | |
| 0.00 | 0.70 | 0.00 | 0.39 | 11.39 | 63.20 | -25.87 | 76.98 | 0.4408 | -731.0 | -603.8 | |
| 0.00 | 2.90 | 0.00 | 1.61 | 13.65 | 62.51 | -26.56 | 72.30 | 0.4579 | -656.0 | -742.7 | |
| 0.00 | 2.02 | 0.00 | 1.13 | 13.61 | 62.17 | -26.90 | 72.56 | 0.4628 | -735.0 | -646.7 | |
| 0.00 | 2.37 | 0.00 | 1.32 | 13.78 | 62.08 | -26.99 | 72.23 | 0.4647 | -676.0 | -522.8 | |
| 0.00 | 1.14 | 0.00 | 0.64 | 12.13 | 62.20 | -26.86 | 75.72 | 0.4578 | -419.0 | -412.6 | |
| 0.00 | 1.84 | 0.00 | 1.05 | 14.48 | 60.20 | -28.86 | 71.67 | 0.4944 | -819.0 | -724.6 | |
| 0.00 | 2.37 | 0.00 | 1.35 | 14.52 | 59.88 | -29.19 | 71.72 | 0.4992 | -629.0 | -548.7 | |
| 0.00 | 0.53 | 0.00 | 0.31 | 13.92 | 57.13 | -31.94 | 73.91 | 0.5366 | 613.0 | 561.2 | |
| 0.00 | 2.28 | 0.00 | 1.34 | 13.26 | 56.75 | -32.32 | 75.23 | 0.5402 | 747.0 | 556.5 | |
| 0.00 | 0.26 | 0.00 | 0.16 | 13.49 | 56.54 | -32.53 | 74.87 | 0.5438 | 514.0 | 516.0 | |
| 0.00 | 2.63 | 0.00 | 1.61 | 12.09 | 53.37 | -35.70 | 78.07 | 0.5854 | 775.0 | 651.1 | |
| 0.00 | 3.25 | 0.00 | 2.00 | 12.35 | 52.68 | -36.39 | 77.76 | 0.5953 | 725.0 | 632.1 | |
| 0.00 | 1.32 | 0.00 | 0.81 | 11.66 | 52.79 | -36.28 | 78.90 | 0.5928 | 647.0 | 569.1 | |
| 0.00 | 1.14 | 0.00 | 0.70 | 10.87 | 52.71 | -36.36 | 80.24 | 0.5930 | 551.0 | 433.1 | |
| 0.00 | 0.97 | 0.00 | 0.60 | 12.04 | 52.50 | -36.57 | 78.31 | 0.5973 | 669.0 | 578.0 | |
| 0.00 | 0.97 | 0.00 | 0.59 | 11.58 | 52.49 | -36.58 | 79.07 | 0.5968 | 476.0 | 414.5 | |
| 0.00 | 0.88 | 0.00 | 0.54 | 12.51 | 52.31 | -36.76 | 77.56 | 0.6006 | 612.0 | 502.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
