SDO HMI 2014-10-08 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.58 | 0.00 | 9.05 | -14.39 | 58.20 | -30.87 | 124.27 | 0.6032 | 277.7 | 128.9 | |
|
previous
or next observation for the same group /

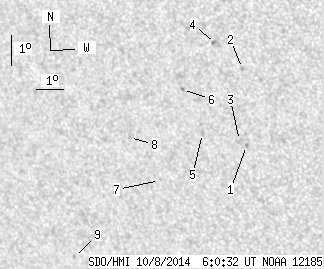

back to the solar disc SDO HMI 2014-10-08 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 0.86 | -15.10 | 59.88 | -29.18 | 126.79 | 0.5900 | 796.0 | 740.4 | |
| 0.00 | 1.23 | 0.00 | 0.74 | -12.64 | 60.09 | -28.98 | 123.40 | 0.5685 | 751.0 | 590.9 | |
| 0.00 | 2.55 | 0.00 | 1.56 | -14.95 | 59.66 | -29.41 | 126.37 | 0.5914 | 554.0 | 448.9 | |
| 0.00 | 3.07 | 0.00 | 1.85 | -11.90 | 59.23 | -29.84 | 121.52 | 0.5734 | -640.0 | -641.1 | |
| 0.00 | 2.11 | 0.00 | 1.31 | -14.80 | 58.35 | -30.72 | 125.00 | 0.6051 | 161.0 | 153.3 | |
| 0.00 | 1.14 | 0.00 | 0.71 | -13.43 | 57.84 | -31.23 | 122.62 | 0.6009 | -797.0 | -703.3 | |
| 0.00 | 0.44 | 0.00 | 0.28 | -16.43 | 56.49 | -32.57 | 125.65 | 0.6378 | 533.0 | 513.4 | |
| 0.00 | 1.67 | 0.00 | 1.07 | -15.10 | 55.63 | -33.44 | 123.17 | 0.6380 | 579.0 | 405.8 | |
| 0.00 | 0.97 | 0.00 | 0.67 | -19.16 | 52.63 | -36.44 | 126.17 | 0.6973 | 562.0 | 446.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
