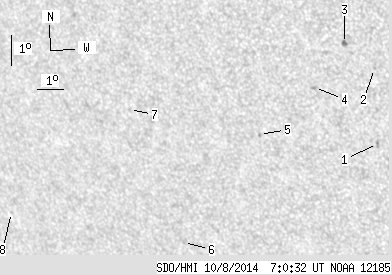

SDO HMI 2014-10-08 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.05 | 0.00 | 7.00 | -14.31 | 56.09 | -32.43 | 123.06 | 0.6193 | 49.9 | -117.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-08 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.93 | 0.00 | 1.18 | -15.08 | 59.88 | -28.64 | 127.26 | 0.5837 | 856.0 | 747.3 | |
| 0.00 | 0.70 | 0.00 | 0.42 | -12.68 | 60.10 | -28.42 | 123.96 | 0.5620 | 799.0 | 671.1 | |
| 0.00 | 2.72 | 0.00 | 1.63 | -11.94 | 59.14 | -29.38 | 121.98 | 0.5681 | -789.0 | -728.8 | |
| 0.00 | 1.93 | 0.00 | 1.19 | -13.41 | 57.88 | -30.64 | 123.06 | 0.5938 | -823.0 | -671.3 | |
| 0.00 | 0.88 | 0.00 | 0.56 | -15.04 | 55.61 | -32.91 | 123.50 | 0.6315 | 605.0 | 540.5 | |
| 0.00 | 0.70 | 0.00 | 0.48 | -18.79 | 51.91 | -36.62 | 125.58 | 0.6966 | 496.0 | 375.1 | |
| 0.00 | 1.58 | 0.00 | 1.07 | -14.56 | 50.75 | -37.77 | 119.42 | 0.6829 | -200.0 | -251.2 | |
| 0.00 | 0.61 | 0.00 | 0.47 | -18.32 | 44.90 | -43.62 | 120.66 | 0.7636 | -545.0 | -439.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
