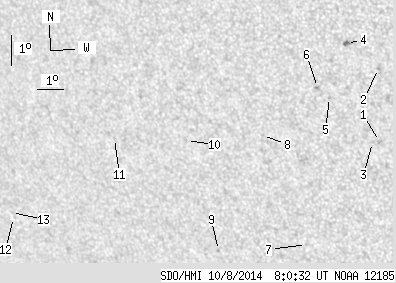

SDO HMI 2014-10-08 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.97 | 15.45 | 0.58 | 9.76 | -14.74 | 55.98 | -31.99 | 123.99 | 0.6170 | 46.6 | -77.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-08 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.49 | 0.00 | 0.90 | -15.03 | 59.83 | -28.14 | 127.66 | 0.5776 | 901.0 | 760.1 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -12.69 | 60.11 | -27.86 | 124.50 | 0.5554 | 837.0 | 710.9 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -15.07 | 59.58 | -28.39 | 127.48 | 0.5808 | 670.0 | 511.4 | |
| 0.97 | 3.86 | 0.58 | 2.31 | -11.95 | 59.08 | -28.89 | 122.42 | 0.5621 | -795.1 | -667.2 | |
| 0.00 | 0.97 | 0.00 | 0.59 | -13.71 | 58.26 | -29.72 | 124.30 | 0.5852 | -565.0 | -487.2 | |
| 0.00 | 1.76 | 0.00 | 1.07 | -13.41 | 57.87 | -30.11 | 123.53 | 0.5875 | -836.0 | -662.5 | |
| 0.00 | 0.61 | 0.00 | 0.40 | -18.56 | 56.58 | -31.40 | 129.39 | 0.6413 | 450.0 | 389.3 | |
| 0.00 | 0.97 | 0.00 | 0.61 | -15.08 | 55.62 | -32.36 | 123.99 | 0.6255 | 600.0 | 505.5 | |
| 0.00 | 1.05 | 0.00 | 0.71 | -18.97 | 53.15 | -34.82 | 127.12 | 0.6795 | 483.0 | 443.5 | |
| 0.00 | 0.97 | 0.00 | 0.64 | -15.42 | 52.71 | -35.27 | 122.24 | 0.6604 | -134.0 | -170.9 | |
| 0.00 | 0.70 | 0.00 | 0.48 | -15.55 | 49.88 | -38.09 | 120.49 | 0.6921 | -400.0 | -352.2 | |
| 0.00 | 0.61 | 0.00 | 0.47 | -18.48 | 44.92 | -43.05 | 121.15 | 0.7589 | -489.0 | -403.0 | |
| 0.00 | 0.70 | 0.00 | 0.53 | -18.32 | 44.88 | -43.09 | 120.94 | 0.7584 | -470.0 | -396.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
