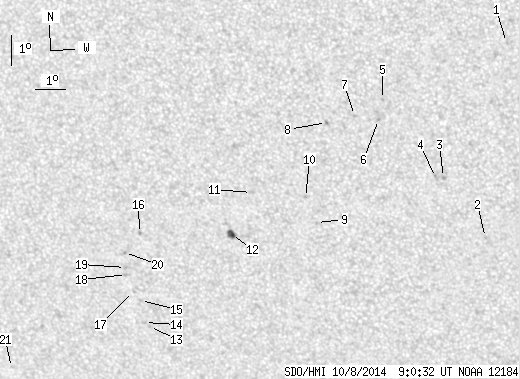

SDO HMI 2014-10-08 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.77 | 32.83 | 2.19 | 18.91 | -20.49 | 72.71 | -14.72 | 152.67 | 0.5096 | 96.4 | 19.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-08 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.65 | -14.44 | 81.21 | -6.22 | 163.49 | 0.3707 | 758.0 | 536.8 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -20.85 | 80.30 | -7.13 | 165.72 | 0.4724 | 727.0 | 650.7 | |
| 0.00 | 1.76 | 0.00 | 0.97 | -18.87 | 79.05 | -8.38 | 162.00 | 0.4482 | 789.0 | 724.2 | |
| 0.00 | 1.84 | 0.00 | 1.02 | -18.87 | 78.79 | -8.64 | 161.49 | 0.4495 | 752.0 | 622.3 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -16.34 | 77.24 | -10.19 | 156.13 | 0.4213 | 794.0 | 675.4 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -17.00 | 77.07 | -10.35 | 156.44 | 0.4318 | 881.0 | 725.4 | |
| 0.00 | 1.32 | 0.00 | 0.72 | -16.88 | 76.32 | -11.11 | 154.80 | 0.4351 | 543.0 | 509.4 | |
| 0.00 | 1.49 | 0.00 | 0.82 | -17.13 | 75.40 | -12.02 | 153.29 | 0.4448 | 773.0 | 665.7 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -20.45 | 74.83 | -12.60 | 155.48 | 0.4944 | 611.0 | 460.4 | |
| 0.00 | 1.49 | 0.00 | 0.84 | -19.62 | 74.54 | -12.89 | 154.21 | 0.4850 | 680.0 | 474.7 | |
| 0.00 | 2.37 | 0.00 | 1.35 | -19.51 | 72.78 | -14.65 | 151.13 | 0.4957 | -727.0 | -553.0 | |
| 3.77 | 5.62 | 2.19 | 3.25 | -20.94 | 71.97 | -15.45 | 151.28 | 0.5200 | 861.3 | 620.0 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -24.19 | 68.77 | -18.66 | 149.85 | 0.5833 | -596.0 | -562.1 | |
| 0.00 | 2.02 | 0.00 | 1.23 | -24.06 | 68.61 | -18.81 | 149.52 | 0.5828 | -637.0 | -492.1 | |
| 0.00 | 1.23 | 0.00 | 0.74 | -23.30 | 68.59 | -18.84 | 148.75 | 0.5739 | -716.0 | -492.5 | |
| 0.00 | 1.49 | 0.00 | 0.88 | -21.00 | 68.88 | -18.55 | 146.79 | 0.5444 | -885.0 | -684.5 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -22.99 | 68.39 | -19.03 | 148.19 | 0.5718 | -709.0 | -588.2 | |
| 0.00 | 2.02 | 0.00 | 1.21 | -22.42 | 68.24 | -19.19 | 147.40 | 0.5662 | -699.0 | -578.0 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -22.18 | 68.24 | -19.19 | 147.16 | 0.5634 | -543.0 | -522.5 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -21.67 | 68.28 | -19.15 | 146.67 | 0.5571 | -820.0 | -734.2 | |
| 0.00 | 0.79 | 0.00 | 0.51 | -25.84 | 63.56 | -23.87 | 145.20 | 0.6403 | -724.0 | -558.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
