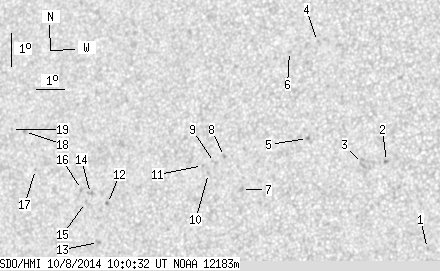

SDO HMI 2014-10-08 10:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 28.62 | 0.00 | 16.49 | 13.28 | 56.90 | -29.98 | 74.09 | 0.5065 | 243.7 | 187.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-08 10:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.66 | 11.31 | 64.62 | -22.26 | 75.65 | 0.3850 | -804.0 | -614.7 | |
| 0.00 | 1.40 | 0.00 | 0.77 | 13.87 | 63.01 | -23.87 | 70.32 | 0.4190 | -904.0 | -780.3 | |
| 0.00 | 4.65 | 0.00 | 2.55 | 13.77 | 62.21 | -24.67 | 71.01 | 0.4305 | -519.0 | -590.3 | |
| 0.00 | 0.44 | 0.00 | 0.25 | 17.39 | 60.17 | -26.71 | 64.64 | 0.4766 | -639.0 | -561.0 | |
| 0.00 | 1.32 | 0.00 | 0.73 | 14.44 | 60.24 | -26.64 | 70.63 | 0.4621 | -762.0 | -680.3 | |
| 0.00 | 1.32 | 0.00 | 0.75 | 17.04 | 59.24 | -27.64 | 65.93 | 0.4878 | -630.0 | -433.5 | |
| 0.00 | 2.02 | 0.00 | 1.14 | 12.79 | 58.15 | -28.73 | 74.96 | 0.4873 | 715.0 | 666.2 | |
| 0.00 | 1.23 | 0.00 | 0.70 | 13.76 | 57.43 | -29.45 | 73.30 | 0.5007 | 829.0 | 683.9 | |
| 0.00 | 2.11 | 0.00 | 1.21 | 13.56 | 57.10 | -29.78 | 73.82 | 0.5048 | 744.0 | 594.6 | |
| 0.00 | 1.40 | 0.00 | 0.81 | 13.21 | 56.93 | -29.95 | 74.54 | 0.5063 | 682.0 | 555.1 | |
| 0.00 | 0.97 | 0.00 | 0.56 | 13.44 | 56.69 | -30.19 | 74.18 | 0.5104 | 654.0 | 494.7 | |
| 0.00 | 1.32 | 0.00 | 0.78 | 12.11 | 53.43 | -33.45 | 77.57 | 0.5540 | 869.0 | 782.3 | |
| 0.00 | 1.84 | 0.00 | 1.10 | 10.92 | 53.26 | -33.62 | 79.74 | 0.5546 | 784.0 | 663.6 | |
| 0.00 | 2.46 | 0.00 | 1.47 | 12.38 | 52.77 | -34.11 | 77.24 | 0.5638 | 830.0 | 694.7 | |
| 0.00 | 0.61 | 0.00 | 0.37 | 12.09 | 52.62 | -34.26 | 77.77 | 0.5654 | 616.0 | 581.7 | |
| 0.00 | 1.49 | 0.00 | 0.90 | 12.48 | 52.42 | -34.46 | 77.14 | 0.5689 | 500.0 | 441.1 | |
| 0.00 | 0.88 | 0.00 | 0.54 | 12.97 | 50.60 | -36.28 | 76.67 | 0.5948 | 507.0 | 473.4 | |
| 0.00 | 1.23 | 0.00 | 0.76 | 14.08 | 49.98 | -36.90 | 74.96 | 0.6053 | 703.0 | 628.1 | |
| 0.00 | 0.70 | 0.00 | 0.44 | 14.11 | 49.47 | -37.41 | 75.03 | 0.6122 | 455.0 | 368.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
