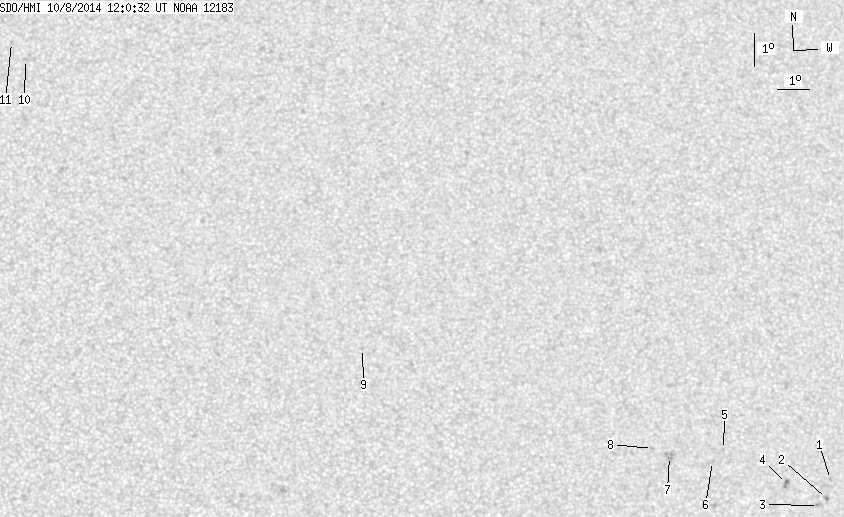

SDO HMI 2014-10-08 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 22.45 | 0.00 | 11.57 | 11.40 | 97.96 | 12.18 | 258.26 | 0.2677 | -238.3 | -269.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-08 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.69 | 9.45 | 103.89 | 18.10 | 281.10 | 0.3137 | -929.0 | -783.3 | |
| 0.00 | 1.84 | 0.00 | 0.96 | 8.89 | 103.73 | 17.95 | 279.37 | 0.3099 | -956.0 | -792.9 | |
| 0.00 | 2.72 | 0.00 | 1.41 | 8.69 | 103.47 | 17.68 | 278.82 | 0.3052 | -820.0 | -738.1 | |
| 0.00 | 3.51 | 0.00 | 1.82 | 9.38 | 102.48 | 16.70 | 281.58 | 0.2907 | 966.0 | 795.6 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 10.46 | 100.55 | 14.76 | 286.85 | 0.2630 | -758.0 | -517.9 | |
| 0.00 | 1.40 | 0.00 | 0.72 | 10.11 | 100.19 | 14.40 | 285.87 | 0.2557 | -882.0 | -697.6 | |
| 0.00 | 5.53 | 0.00 | 2.82 | 10.30 | 98.85 | 13.06 | 288.00 | 0.2349 | -694.0 | -797.7 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 10.55 | 98.33 | 12.54 | 289.70 | 0.2278 | -852.0 | -657.2 | |
| 0.00 | 1.49 | 0.00 | 0.75 | 13.71 | 89.44 | 3.66 | 334.32 | 0.1437 | 738.0 | 528.1 | |
| 0.00 | 1.40 | 0.00 | 0.73 | 22.54 | 78.70 | -7.09 | 22.13 | 0.3038 | 775.0 | 607.0 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 23.06 | 78.21 | -7.57 | 22.76 | 0.3149 | 791.0 | 643.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
