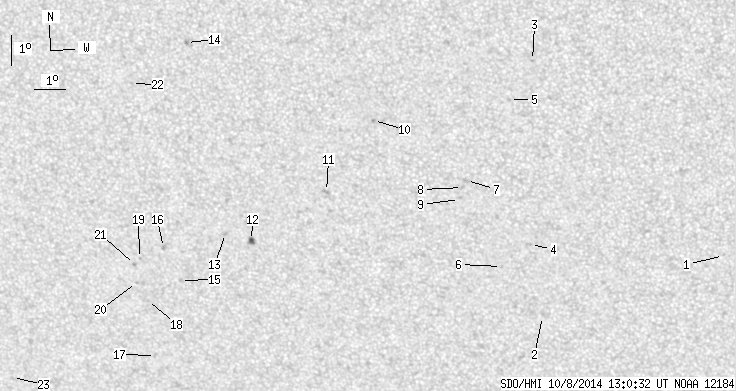

SDO HMI 2014-10-08 13:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.02 | 32.95 | 1.15 | 18.75 | -20.10 | 73.43 | -11.80 | 157.31 | 0.4887 | 114.1 | 125.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-08 13:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.34 | -21.16 | 87.27 | 2.03 | 184.10 | 0.4643 | -646.0 | -521.0 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -23.24 | 81.39 | -3.84 | 172.88 | 0.4989 | 388.0 | 400.5 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -14.75 | 81.28 | -3.95 | 169.48 | 0.3668 | 595.0 | 491.6 | |
| 0.00 | 0.70 | 0.00 | 0.39 | -20.79 | 81.08 | -4.16 | 171.53 | 0.4622 | 698.0 | 584.2 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -16.01 | 80.54 | -4.70 | 168.28 | 0.3892 | 775.0 | 538.2 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -21.54 | 80.12 | -5.12 | 169.92 | 0.4761 | 585.0 | 465.5 | |
| 0.00 | 2.81 | 0.00 | 1.54 | -18.67 | 79.10 | -6.13 | 166.50 | 0.4356 | 632.0 | 632.6 | |
| 0.00 | 1.58 | 0.00 | 0.87 | -18.91 | 78.97 | -6.27 | 166.35 | 0.4397 | 757.0 | 603.7 | |
| 0.00 | 0.44 | 0.00 | 0.24 | -19.31 | 78.85 | -6.38 | 166.34 | 0.4462 | 600.0 | 656.2 | |
| 0.00 | 1.40 | 0.00 | 0.77 | -16.75 | 76.24 | -9.00 | 159.00 | 0.4199 | 832.0 | 725.5 | |
| 0.00 | 2.72 | 0.00 | 1.52 | -19.11 | 74.60 | -10.64 | 157.80 | 0.4636 | 662.0 | 628.9 | |
| 2.02 | 3.51 | 1.15 | 2.01 | -20.81 | 72.02 | -13.21 | 154.75 | 0.5030 | 852.3 | 674.4 | |
| 0.00 | 1.49 | 0.00 | 0.86 | -20.59 | 71.18 | -14.05 | 153.17 | 0.5057 | -598.0 | -482.5 | |
| 0.00 | 1.75 | 0.00 | 0.96 | -14.36 | 70.43 | -14.80 | 144.69 | 0.4300 | 829.0 | 697.0 | |
| 0.00 | 1.84 | 0.00 | 1.08 | -22.23 | 69.51 | -15.72 | 152.11 | 0.5384 | -835.0 | -470.5 | |
| 0.00 | 2.37 | 0.00 | 1.38 | -21.13 | 69.07 | -16.17 | 150.37 | 0.5275 | -852.0 | -617.6 | |
| 0.00 | 1.32 | 0.00 | 0.80 | -24.86 | 68.32 | -16.92 | 152.78 | 0.5794 | -620.0 | -523.3 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -22.95 | 68.31 | -16.93 | 151.04 | 0.5559 | -638.0 | -476.9 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -21.53 | 68.22 | -17.02 | 149.51 | 0.5388 | -835.0 | -701.1 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -22.35 | 68.01 | -17.23 | 150.03 | 0.5505 | -573.0 | -562.9 | |
| 0.00 | 1.40 | 0.00 | 0.83 | -21.73 | 68.02 | -17.21 | 149.44 | 0.5428 | -806.0 | -663.6 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -15.73 | 68.55 | -16.68 | 143.31 | 0.4644 | 772.0 | 596.1 | |
| 0.00 | 1.05 | 0.00 | 0.67 | -25.83 | 63.12 | -22.12 | 147.15 | 0.6270 | -61.0 | -163.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
