SDO HMI 2014-10-08 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.53 | 0.00 | 9.16 | -18.36 | 104.19 | 20.06 | 217.13 | 0.5399 | 155.3 | 198.1 | |
|
previous
or next observation for the same group /

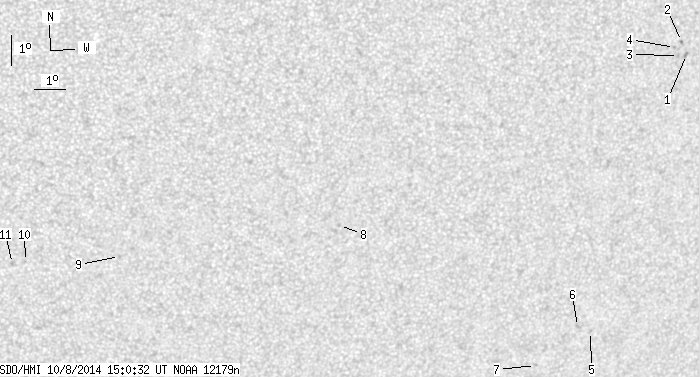

back to the solar disc SDO HMI 2014-10-08 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.46 | 0.00 | 1.45 | -13.77 | 110.69 | 26.55 | 232.59 | 0.5487 | 696.0 | 599.0 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -13.34 | 110.46 | 26.33 | 232.99 | 0.5425 | 795.0 | 701.8 | |
| 0.00 | 1.40 | 0.00 | 0.83 | -13.79 | 110.41 | 26.28 | 232.27 | 0.5457 | 672.0 | 549.9 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -13.52 | 110.24 | 26.11 | 232.49 | 0.5415 | 698.0 | 576.9 | |
| 0.00 | 1.23 | 0.00 | 0.77 | -22.78 | 108.74 | 24.60 | 218.83 | 0.6145 | 550.0 | 432.0 | |
| 0.00 | 2.02 | 0.00 | 1.26 | -22.58 | 108.24 | 24.10 | 218.48 | 0.6081 | 736.0 | 649.8 | |
| 0.00 | 1.23 | 0.00 | 0.77 | -23.86 | 106.98 | 22.84 | 215.67 | 0.6112 | 567.0 | 384.5 | |
| 0.00 | 1.40 | 0.00 | 0.80 | -18.84 | 99.61 | 15.48 | 210.95 | 0.4931 | -855.0 | -663.8 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -19.69 | 92.54 | 8.40 | 197.46 | 0.4602 | -670.0 | -480.1 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -19.81 | 89.53 | 5.39 | 191.36 | 0.4504 | -668.0 | -521.7 | |
| 0.00 | 1.67 | 0.00 | 0.92 | -19.87 | 89.11 | 4.98 | 190.49 | 0.4502 | -813.0 | -649.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
