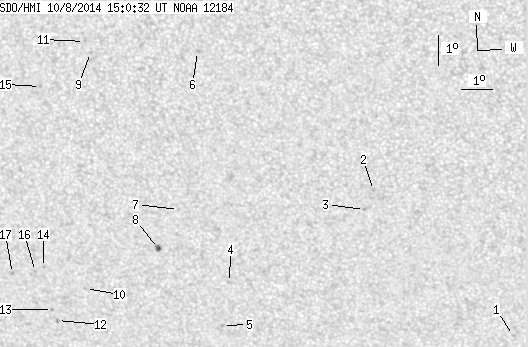

SDO HMI 2014-10-08 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.93 | 20.34 | 1.10 | 11.56 | -19.96 | 72.05 | -12.09 | 156.00 | 0.4875 | 143.2 | 100.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-08 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.40 | -23.61 | 83.51 | -0.62 | 178.86 | 0.5009 | 672.0 | 597.4 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -18.73 | 79.11 | -5.03 | 168.89 | 0.4327 | 885.0 | 737.5 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -19.36 | 78.80 | -5.34 | 168.54 | 0.4434 | 780.0 | 641.2 | |
| 0.00 | 1.32 | 0.00 | 0.75 | -21.88 | 74.31 | -9.83 | 161.41 | 0.4988 | 522.0 | 483.6 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -23.36 | 73.97 | -10.17 | 161.82 | 0.5214 | 844.0 | 751.8 | |
| 0.00 | 1.40 | 0.00 | 0.76 | -14.28 | 73.74 | -10.40 | 153.45 | 0.3930 | 786.0 | 710.8 | |
| 0.00 | 1.32 | 0.00 | 0.74 | -19.45 | 72.82 | -11.31 | 156.85 | 0.4725 | -776.0 | -579.9 | |
| 1.93 | 3.24 | 1.10 | 1.85 | -20.77 | 72.07 | -12.07 | 156.66 | 0.4954 | 764.2 | 594.7 | |
| 0.00 | 1.23 | 0.00 | 0.67 | -14.39 | 70.35 | -13.79 | 146.63 | 0.4215 | 775.0 | 541.8 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -22.19 | 69.52 | -14.62 | 153.76 | 0.5305 | -763.0 | -651.5 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -14.05 | 70.18 | -13.96 | 145.84 | 0.4184 | 815.0 | 606.1 | |
| 0.00 | 1.23 | 0.00 | 0.73 | -23.32 | 68.45 | -15.69 | 153.16 | 0.5521 | -769.0 | -688.1 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -22.95 | 68.32 | -15.81 | 152.64 | 0.5482 | -713.0 | -593.9 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -21.52 | 68.19 | -15.95 | 151.10 | 0.5309 | -777.0 | -661.2 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -15.53 | 68.67 | -15.47 | 145.09 | 0.4509 | 804.0 | 607.4 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -21.67 | 67.90 | -16.23 | 150.81 | 0.5348 | -636.0 | -595.5 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -21.76 | 67.12 | -17.02 | 149.75 | 0.5417 | -841.0 | -668.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
