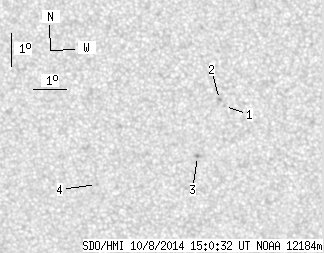

SDO HMI 2014-10-08 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.43 | 0.00 | 2.76 | -5.26 | 77.39 | -6.74 | 149.86 | 0.2327 | -429.2 | -70.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-08 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.53 | -4.35 | 78.29 | -5.84 | 151.16 | 0.2114 | -788.0 | -541.3 | |
| 0.00 | 1.40 | 0.00 | 0.71 | -4.14 | 78.14 | -5.99 | 150.05 | 0.2095 | -1135.0 | -915.4 | |
| 0.00 | 2.28 | 0.00 | 1.16 | -5.88 | 77.46 | -6.68 | 151.21 | 0.2413 | 1014.0 | 858.4 | |
| 0.00 | 0.70 | 0.00 | 0.36 | -6.79 | 74.37 | -9.77 | 143.19 | 0.2824 | -808.0 | -704.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
