SDO HMI 2014-10-08 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.21 | 0.00 | 9.91 | 13.35 | 95.84 | 12.25 | 306.26 | 0.2762 | 51.5 | -138.8 | |
|
previous
or next observation for the same group /

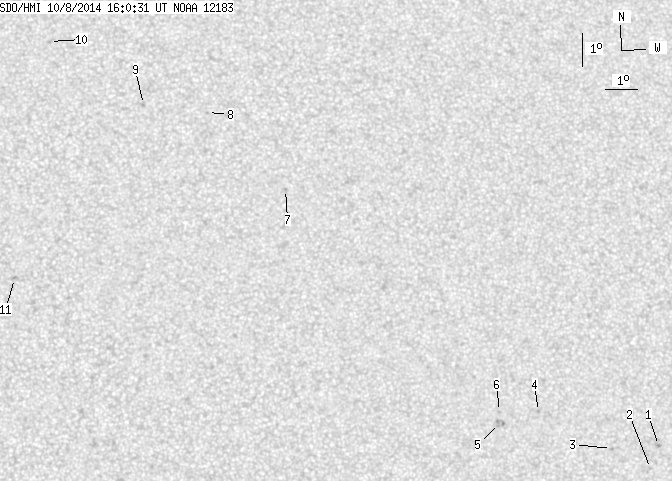

back to the solar disc SDO HMI 2014-10-08 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.93 | 0.00 | 1.02 | 9.45 | 104.06 | 20.47 | 280.13 | 0.3520 | -1000.0 | -830.1 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 8.78 | 103.76 | 20.17 | 278.29 | 0.3459 | -754.0 | -515.8 | |
| 0.00 | 1.32 | 0.00 | 0.69 | 9.42 | 102.54 | 18.95 | 280.63 | 0.3274 | 846.0 | 720.7 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 10.61 | 100.27 | 16.69 | 285.73 | 0.2945 | -899.0 | -755.7 | |
| 0.00 | 5.70 | 0.00 | 2.93 | 10.29 | 99.02 | 15.43 | 285.63 | 0.2731 | -943.0 | -807.6 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 10.65 | 99.04 | 15.45 | 286.89 | 0.2749 | -708.0 | -603.4 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 17.52 | 92.65 | 9.06 | 322.48 | 0.2478 | 867.0 | 679.4 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 19.92 | 90.27 | 6.69 | 335.10 | 0.2613 | 708.0 | 542.9 | |
| 0.00 | 1.58 | 0.00 | 0.81 | 20.19 | 88.23 | 4.65 | 342.42 | 0.2530 | 881.0 | 639.5 | |
| 0.00 | 1.75 | 0.00 | 0.90 | 22.16 | 85.26 | 1.67 | 354.35 | 0.2757 | 785.0 | 590.5 | |
| 0.00 | 1.67 | 0.00 | 0.83 | 14.90 | 84.09 | 0.51 | 356.72 | 0.1502 | 784.0 | 628.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
