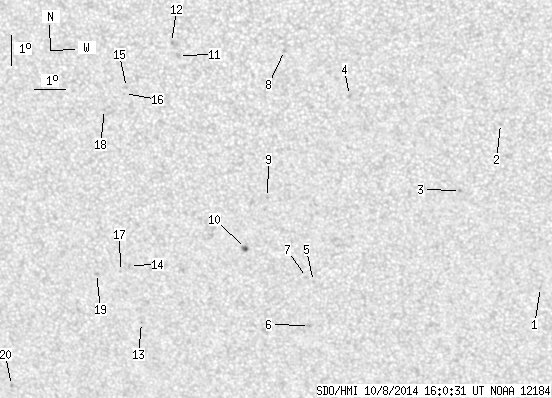

SDO HMI 2014-10-08 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.49 | 25.78 | 0.85 | 14.52 | -19.28 | 72.15 | -11.43 | 156.72 | 0.4744 | 291.6 | 269.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-08 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.69 | -21.96 | 81.61 | -1.97 | 176.14 | 0.4766 | 626.0 | 501.3 | |
| 0.00 | 1.32 | 0.00 | 0.71 | -16.52 | 80.43 | -3.15 | 172.26 | 0.3930 | 598.0 | 499.6 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -18.72 | 79.12 | -4.46 | 170.12 | 0.4310 | 919.0 | 773.5 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -15.65 | 75.73 | -7.86 | 160.57 | 0.3973 | 824.0 | 698.2 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -21.83 | 74.25 | -9.34 | 162.25 | 0.4959 | 679.0 | 588.4 | |
| 0.00 | 1.49 | 0.00 | 0.86 | -23.34 | 74.01 | -9.57 | 162.80 | 0.5185 | 846.0 | 683.2 | |
| 0.00 | 1.58 | 0.00 | 0.90 | -21.70 | 74.03 | -9.56 | 161.77 | 0.4950 | 540.0 | 303.8 | |
| 0.00 | 1.40 | 0.00 | 0.75 | -14.24 | 73.75 | -9.83 | 154.66 | 0.3884 | 830.0 | 600.6 | |
| 0.00 | 1.23 | 0.00 | 0.69 | -19.04 | 72.94 | -10.64 | 157.74 | 0.4626 | -844.0 | -599.9 | |
| 1.49 | 3.16 | 0.85 | 1.79 | -20.76 | 72.11 | -11.48 | 157.67 | 0.4918 | 827.2 | 655.3 | |
| 0.00 | 2.19 | 0.00 | 1.19 | -14.47 | 70.39 | -13.19 | 147.89 | 0.4174 | 831.0 | 597.4 | |
| 0.00 | 1.23 | 0.00 | 0.67 | -14.06 | 70.20 | -13.39 | 146.96 | 0.4136 | 826.0 | 617.7 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -23.38 | 68.39 | -15.19 | 153.93 | 0.5496 | -782.0 | -711.8 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -21.44 | 68.21 | -15.37 | 151.89 | 0.5258 | -800.0 | -582.2 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -15.55 | 68.66 | -14.93 | 146.06 | 0.4464 | 823.0 | 701.1 | |
| 0.00 | 0.70 | 0.00 | 0.39 | -15.74 | 68.58 | -15.01 | 146.17 | 0.4496 | 591.0 | 524.6 | |
| 0.00 | 0.26 | 0.00 | 0.15 | -21.65 | 67.89 | -15.70 | 151.60 | 0.5308 | -617.0 | -556.3 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -16.28 | 67.89 | -15.70 | 145.67 | 0.4624 | 600.0 | 536.2 | |
| 0.00 | 1.49 | 0.00 | 0.87 | -21.74 | 67.07 | -16.51 | 150.47 | 0.5378 | -672.0 | -560.9 | |
| 0.00 | 1.23 | 0.00 | 0.77 | -25.74 | 63.55 | -20.04 | 149.54 | 0.6110 | -733.0 | -597.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
