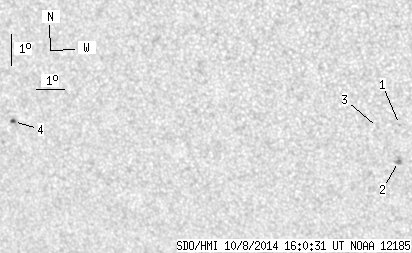

SDO HMI 2014-10-08 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.40 | 8.42 | 0.93 | 5.04 | -12.62 | 55.64 | -27.95 | 125.19 | 0.5559 | -38.2 | 225.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-08 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.40 | -11.81 | 60.39 | -23.20 | 128.09 | 0.4919 | 270.0 | 349.2 | |
| 0.00 | 4.30 | 0.00 | 2.46 | -12.98 | 60.24 | -23.34 | 129.79 | 0.5046 | 896.0 | 548.1 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -11.93 | 59.64 | -23.95 | 127.42 | 0.5020 | -751.0 | -434.2 | |
| 1.40 | 2.54 | 0.93 | 1.68 | -12.49 | 46.58 | -37.01 | 117.09 | 0.6624 | -607.8 | -456.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
