SDO HMI 2014-10-08 17:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 39.37 | 0.00 | 22.10 | 13.59 | 56.00 | -27.04 | 71.94 | 0.4670 | 216.2 | 241.6 | |
|
previous
or next observation for the same group /

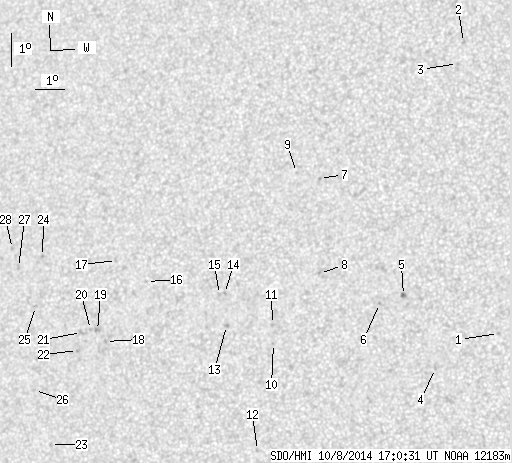

back to the solar disc SDO HMI 2014-10-08 17:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.41 | 12.91 | 66.41 | -16.62 | 66.83 | 0.3046 | -740.0 | -600.3 | |
| 0.00 | 1.23 | 0.00 | 0.66 | 21.74 | 64.39 | -18.65 | 47.57 | 0.4041 | -649.0 | -540.1 | |
| 0.00 | 1.23 | 0.00 | 0.66 | 21.09 | 64.27 | -18.76 | 49.04 | 0.3991 | -704.0 | -475.9 | |
| 0.00 | 1.32 | 0.00 | 0.69 | 11.79 | 64.46 | -18.57 | 72.03 | 0.3292 | -788.0 | -603.3 | |
| 0.00 | 2.54 | 0.00 | 1.35 | 13.95 | 63.25 | -19.78 | 67.02 | 0.3583 | -1148.0 | -898.1 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 13.68 | 62.49 | -20.55 | 68.39 | 0.3684 | -941.0 | -793.8 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 17.39 | 60.07 | -22.96 | 61.70 | 0.4247 | -749.0 | -635.2 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 14.51 | 60.41 | -22.62 | 67.95 | 0.4035 | -730.0 | -670.5 | |
| 0.00 | 0.70 | 0.00 | 0.39 | 17.54 | 59.26 | -23.77 | 62.08 | 0.4368 | -652.0 | -514.6 | |
| 0.00 | 0.79 | 0.00 | 0.43 | 12.34 | 59.09 | -23.94 | 73.92 | 0.4144 | 788.0 | 704.7 | |
| 0.00 | 1.23 | 0.00 | 0.67 | 12.91 | 59.00 | -24.03 | 72.63 | 0.4177 | 789.0 | 643.1 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 9.11 | 58.83 | -24.21 | 81.80 | 0.4108 | 609.0 | 550.8 | |
| 0.00 | 1.49 | 0.00 | 0.82 | 12.81 | 57.45 | -25.58 | 73.62 | 0.4407 | 908.0 | 754.5 | |
| 0.00 | 1.32 | 0.00 | 0.73 | 13.77 | 57.28 | -25.76 | 71.59 | 0.4467 | 804.0 | 674.3 | |
| 0.00 | 1.67 | 0.00 | 0.92 | 13.74 | 57.11 | -25.92 | 71.76 | 0.4490 | 665.0 | 552.1 | |
| 0.00 | 1.05 | 0.00 | 0.60 | 14.01 | 54.54 | -28.49 | 72.40 | 0.4876 | 690.0 | 510.8 | |
| 0.00 | 1.84 | 0.00 | 1.06 | 14.58 | 53.40 | -29.64 | 71.75 | 0.5059 | 321.0 | 386.6 | |
| 0.00 | 1.40 | 0.00 | 0.80 | 12.13 | 53.34 | -29.70 | 76.59 | 0.4999 | 913.0 | 703.8 | |
| 0.00 | 2.28 | 0.00 | 1.31 | 12.44 | 53.02 | -30.02 | 76.07 | 0.5054 | 721.0 | 679.2 | |
| 0.00 | 1.05 | 0.00 | 0.60 | 12.46 | 52.76 | -30.27 | 76.11 | 0.5091 | 695.0 | 511.8 | |
| 0.00 | 3.77 | 0.00 | 2.17 | 12.35 | 52.46 | -30.58 | 76.40 | 0.5133 | 692.0 | 535.9 | |
| 0.00 | 1.23 | 0.00 | 0.71 | 11.81 | 52.38 | -30.65 | 77.48 | 0.5132 | 728.0 | 592.2 | |
| 0.00 | 1.40 | 0.00 | 0.81 | 8.94 | 51.74 | -31.30 | 83.15 | 0.5189 | 634.0 | 457.0 | |
| 0.00 | 0.88 | 0.00 | 0.52 | 14.56 | 50.73 | -32.31 | 72.82 | 0.5436 | 754.0 | 644.8 | |
| 0.00 | 1.40 | 0.00 | 0.82 | 13.04 | 50.71 | -32.33 | 75.60 | 0.5400 | 671.0 | 524.3 | |
| 0.00 | 0.96 | 0.00 | 0.56 | 10.52 | 51.00 | -32.04 | 80.22 | 0.5313 | 659.0 | 594.5 | |
| 0.00 | 1.93 | 0.00 | 1.15 | 14.18 | 49.91 | -33.13 | 73.77 | 0.5540 | 440.0 | 401.2 | |
| 0.00 | 1.67 | 0.00 | 0.99 | 14.74 | 49.59 | -33.44 | 72.88 | 0.5599 | 673.0 | 562.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
