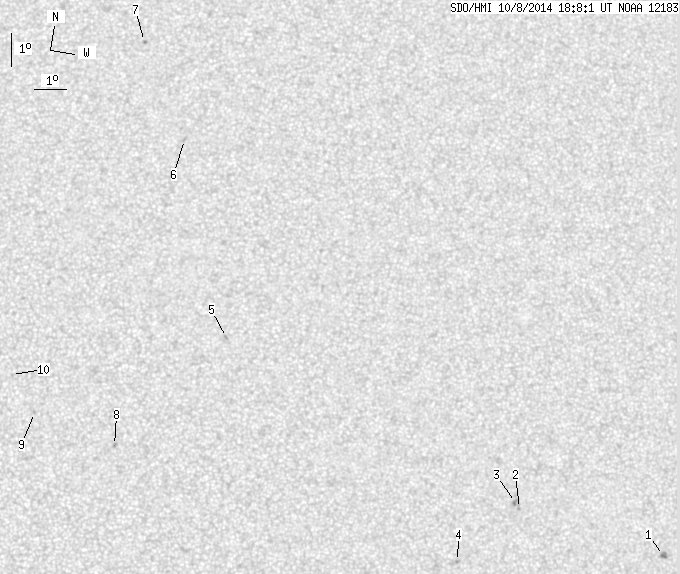

SDO HMI 2014-10-08 18:08:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.78 | 0.00 | 9.16 | 12.20 | 94.19 | 11.77 | 305.74 | 0.2527 | -395.9 | -394.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-08 18:08:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.94 | 0.00 | 2.10 | 9.47 | 104.05 | 21.64 | 279.78 | 0.3707 | -1110.0 | -830.6 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 10.19 | 99.25 | 16.84 | 284.21 | 0.2955 | -864.0 | -743.6 | |
| 0.00 | 2.72 | 0.00 | 1.41 | 10.35 | 99.10 | 16.69 | 284.85 | 0.2936 | -1015.0 | -884.7 | |
| 0.00 | 1.40 | 0.00 | 0.72 | 8.32 | 97.57 | 15.16 | 278.52 | 0.2628 | -956.0 | -774.9 | |
| 0.00 | 1.40 | 0.00 | 0.71 | 13.75 | 89.37 | 6.96 | 317.89 | 0.1763 | 823.0 | 624.4 | |
| 0.00 | 2.02 | 0.00 | 1.03 | 19.44 | 87.04 | 4.63 | 341.50 | 0.2409 | 881.0 | 677.6 | |
| 0.00 | 1.40 | 0.00 | 0.72 | 22.18 | 85.24 | 2.83 | 350.53 | 0.2786 | 841.0 | 747.2 | |
| 0.00 | 1.75 | 0.00 | 0.87 | 9.94 | 86.56 | 4.14 | 311.72 | 0.0958 | -1055.0 | -862.5 | |
| 0.00 | 1.23 | 0.00 | 0.61 | 10.46 | 83.98 | 1.56 | 339.62 | 0.0775 | -877.0 | -584.2 | |
| 0.00 | 0.61 | 0.00 | 0.31 | 11.44 | 83.07 | 0.66 | 352.85 | 0.0905 | -627.0 | -423.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
