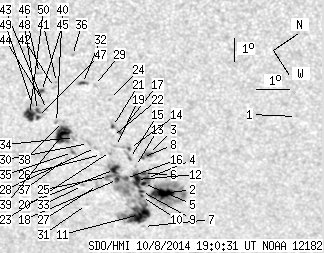

SDO HMI 2014-10-08 19:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.33 | 302.34 | 72.62 | 212.73 | -15.06 | 122.19 | 40.26 | 241.43 | 0.7126 | 265.5 | 251.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-08 19:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.31 | 0.00 | 0.90 | -9.57 | 123.07 | 41.14 | 249.16 | 0.6965 | 576.0 | 415.5 | |
| 15.95 | 66.10 | 11.42 | 47.36 | -14.45 | 123.55 | 41.62 | 243.01 | 0.7242 | 903.9 | 242.0 | |
| 2.02 | 6.57 | 1.40 | 4.57 | -14.00 | 121.81 | 39.88 | 242.61 | 0.7030 | 933.2 | 739.2 | |
| 2.72 | 133.42 | 1.92 | 95.28 | -14.54 | 122.69 | 40.76 | 242.41 | 0.7154 | 908.1 | 421.2 | |
| 1.75 | -4.00 | 1.24 | -4.00 | -14.72 | 122.84 | 40.91 | 242.27 | 0.7179 | 852.0 | 999999 | |
| 1.05 | -4.00 | 0.74 | -4.00 | -14.52 | 122.45 | 40.52 | 242.31 | 0.7126 | 982.4 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.58 | -15.62 | 124.55 | 42.62 | 242.08 | 0.7403 | 207.0 | 95.1 | |
| 0.35 | -3.00 | 0.24 | -3.00 | -14.21 | 121.82 | 39.89 | 242.34 | 0.7042 | 860.5 | 999999 | |
| 1.23 | -4.00 | 0.88 | -4.00 | -14.94 | 123.11 | 41.19 | 242.15 | 0.7219 | 652.4 | 999999 | |
| 0.96 | -4.00 | 0.69 | -4.00 | -15.04 | 123.31 | 41.38 | 242.13 | 0.7245 | 688.4 | 999999 | |
| 25.25 | -4.00 | 18.34 | -4.00 | -15.47 | 123.99 | 42.06 | 241.97 | 0.7338 | 725.1 | 999999 | |
| 7.98 | -4.00 | 5.64 | -4.00 | -14.82 | 122.56 | 40.63 | 241.99 | 0.7154 | 928.6 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.49 | -14.57 | 122.04 | 40.11 | 242.00 | 0.7086 | 654.0 | 593.4 | |
| 0.70 | 8.42 | 0.48 | 5.82 | -14.36 | 121.26 | 39.33 | 241.83 | 0.6988 | 731.2 | 566.2 | |
| 0.61 | -14.00 | 0.43 | -14.00 | -14.56 | 121.64 | 39.71 | 241.78 | 0.7041 | 804.6 | 999999 | |
| 1.75 | -4.00 | 1.24 | -4.00 | -15.07 | 122.34 | 40.41 | 241.53 | 0.7143 | 677.2 | 999999 | |
| 0.88 | 5.70 | 0.60 | 3.88 | -14.28 | 120.49 | 38.56 | 241.46 | 0.6900 | -269.2 | -224.1 | |
| 1.84 | -4.00 | 1.30 | -4.00 | -15.30 | 122.24 | 40.31 | 241.20 | 0.7145 | -265.2 | 999999 | |
| 0.00 | 1.49 | 0.00 | 1.03 | -14.67 | 120.95 | 39.02 | 241.23 | 0.6971 | 863.0 | 674.9 | |
| 4.38 | -4.00 | 3.07 | -4.00 | -15.17 | 121.80 | 39.87 | 241.11 | 0.7091 | 894.0 | 999999 | |
| 0.79 | -17.00 | 0.54 | -17.00 | -14.34 | 120.15 | 38.22 | 241.18 | 0.6865 | -399.0 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.78 | -14.54 | 120.52 | 38.59 | 241.14 | 0.6918 | 413.0 | 317.9 | |
| 0.00 | 2.10 | 0.00 | 1.45 | -14.90 | 121.05 | 39.12 | 241.00 | 0.6995 | 841.0 | 732.3 | |
| 0.00 | 0.70 | 0.00 | 0.47 | -13.86 | 119.12 | 37.19 | 241.15 | 0.6723 | 602.0 | 542.4 | |
| 1.40 | -4.00 | 0.99 | -4.00 | -15.46 | 121.97 | 40.04 | 240.83 | 0.7125 | -330.2 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.55 | -15.19 | 121.01 | 39.09 | 240.61 | 0.7007 | 621.0 | 537.7 | |
| 0.00 | 2.98 | 0.00 | 2.11 | -15.93 | 122.14 | 40.21 | 240.34 | 0.7168 | 215.0 | 260.6 | |
| 0.00 | 1.31 | 0.00 | 0.91 | -15.20 | 120.65 | 38.72 | 240.37 | 0.6968 | 769.0 | 596.7 | |
| 0.00 | 0.96 | 0.00 | 0.64 | -13.96 | 118.36 | 36.43 | 240.53 | 0.6643 | 181.0 | 121.1 | |
| 0.00 | 2.37 | 0.00 | 1.62 | -15.29 | 120.38 | 38.45 | 240.08 | 0.6944 | 271.0 | 248.1 | |
| 0.00 | 0.96 | 0.00 | 0.69 | -16.61 | 122.71 | 40.78 | 239.83 | 0.7263 | 475.0 | 422.0 | |
| 1.23 | 3.33 | 0.81 | 2.20 | -14.22 | 118.09 | 36.16 | 239.99 | 0.6628 | -641.4 | -435.9 | |
| 0.00 | 1.49 | 0.00 | 1.05 | -16.31 | 121.89 | 39.96 | 239.71 | 0.7162 | 685.0 | 542.2 | |
| 0.00 | 2.89 | 0.00 | 1.98 | -15.52 | 119.93 | 38.00 | 239.49 | 0.6908 | -261.0 | -156.4 | |
| 0.61 | 3.24 | 0.42 | 2.24 | -15.88 | 120.46 | 38.53 | 239.37 | 0.6986 | -345.0 | -101.0 | |
| 0.00 | 0.79 | 0.00 | 0.51 | -13.92 | 116.94 | 35.01 | 239.62 | 0.6478 | -731.0 | -628.7 | |
| 0.00 | 0.96 | 0.00 | 0.67 | -16.16 | 120.59 | 38.66 | 239.10 | 0.7016 | -327.0 | -252.8 | |
| 0.00 | 1.14 | 0.00 | 0.77 | -15.48 | 119.15 | 37.22 | 239.05 | 0.6821 | -653.0 | -531.6 | |
| 17.09 | 21.92 | 11.65 | 14.94 | -15.77 | 119.62 | 37.69 | 238.98 | 0.6889 | -634.8 | -213.6 | |
| 0.00 | 1.49 | 0.00 | 1.01 | -15.68 | 119.08 | 37.15 | 238.74 | 0.6825 | -888.0 | -691.9 | |
| 0.00 | 0.79 | 0.00 | 0.52 | -14.86 | 117.63 | 35.70 | 238.82 | 0.6615 | 362.0 | 301.4 | |
| 0.00 | 1.67 | 0.00 | 1.10 | -15.02 | 117.77 | 35.84 | 238.72 | 0.6641 | -487.0 | -374.4 | |
| 0.00 | 0.79 | 0.00 | 0.53 | -15.67 | 118.44 | 36.51 | 238.32 | 0.6755 | -751.0 | -681.3 | |
| 0.00 | 0.79 | 0.00 | 0.53 | -15.58 | 118.10 | 36.17 | 238.20 | 0.6712 | -726.0 | -665.2 | |
| 1.31 | 2.72 | 0.87 | 1.80 | -15.43 | 117.70 | 35.77 | 238.12 | 0.6659 | -704.2 | -544.1 | |
| 0.00 | 1.67 | 0.00 | 1.09 | -15.12 | 117.03 | 35.10 | 238.06 | 0.6564 | -637.0 | -539.5 | |
| 1.40 | 17.71 | 0.94 | 11.90 | -16.06 | 118.58 | 36.65 | 237.91 | 0.6795 | -584.1 | -583.3 | |
| 1.49 | -47.00 | 1.00 | -47.00 | -15.92 | 118.33 | 36.40 | 237.92 | 0.6758 | -882.5 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.76 | -15.92 | 118.03 | 36.10 | 237.70 | 0.6726 | -812.0 | -741.3 | |
| 8.59 | -47.00 | 5.77 | -47.00 | -16.21 | 118.35 | 36.42 | 237.56 | 0.6778 | -798.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
