SDO HMI 2014-10-08 19:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.70 | 26.99 | 0.40 | 15.28 | -20.77 | 73.76 | -8.17 | 164.84 | 0.4798 | 250.3 | 205.2 | |
|
previous
or next observation for the same group /

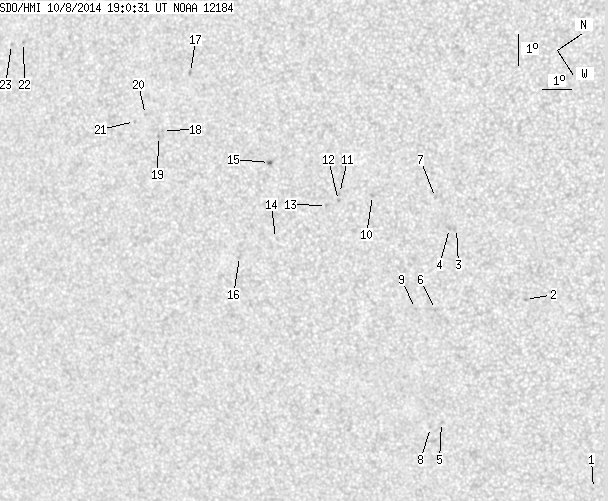

back to the solar disc SDO HMI 2014-10-08 19:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.43 | -17.74 | 86.53 | 4.60 | 190.63 | 0.4161 | -530.0 | -515.9 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -16.13 | 80.41 | -1.51 | 176.19 | 0.3842 | 983.0 | 828.9 | |
| 0.00 | 0.61 | 0.00 | 0.33 | -16.73 | 77.36 | -4.57 | 168.96 | 0.4001 | 453.0 | 454.9 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -16.92 | 77.23 | -4.70 | 168.76 | 0.4035 | 866.0 | 722.7 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -20.69 | 82.15 | 0.22 | 180.45 | 0.4559 | 675.0 | 509.0 | |
| 0.00 | 1.93 | 0.00 | 1.06 | -18.76 | 79.07 | -2.86 | 173.64 | 0.4282 | 885.0 | 639.3 | |
| 0.00 | 1.31 | 0.00 | 0.71 | -16.74 | 76.18 | -5.74 | 166.23 | 0.4044 | 778.0 | 671.1 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -21.09 | 82.09 | 0.16 | 180.32 | 0.4622 | 630.0 | 527.2 | |
| 0.00 | 0.61 | 0.00 | 0.34 | -19.30 | 78.68 | -3.25 | 172.94 | 0.4373 | 703.0 | 580.9 | |
| 0.00 | 1.67 | 0.00 | 0.92 | -18.44 | 74.96 | -6.97 | 164.61 | 0.4353 | 897.0 | 647.0 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -19.32 | 74.29 | -7.64 | 163.79 | 0.4515 | 546.0 | 458.9 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -19.47 | 74.45 | -7.48 | 164.21 | 0.4531 | 719.0 | 546.8 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -19.90 | 74.35 | -7.58 | 164.28 | 0.4599 | 686.0 | 591.5 | |
| 0.00 | 0.53 | 0.00 | 0.30 | -21.95 | 74.21 | -7.72 | 165.23 | 0.4908 | 599.0 | 613.3 | |
| 0.70 | 1.93 | 0.40 | 1.09 | -20.73 | 72.12 | -9.81 | 160.62 | 0.4823 | 897.1 | 688.0 | |
| 0.00 | 2.10 | 0.00 | 1.21 | -23.32 | 73.96 | -7.97 | 165.54 | 0.5117 | 801.0 | 638.3 | |
| 0.00 | 1.75 | 0.00 | 1.01 | -21.34 | 68.18 | -13.75 | 154.36 | 0.5137 | -749.0 | -652.2 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -23.21 | 69.08 | -12.85 | 157.37 | 0.5333 | -781.0 | -622.3 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -23.44 | 69.15 | -12.78 | 157.66 | 0.5360 | -786.0 | -598.4 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -23.42 | 68.30 | -13.63 | 156.31 | 0.5405 | -765.0 | -667.2 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -23.87 | 68.24 | -13.69 | 156.59 | 0.5469 | -658.0 | -513.7 | |
| 0.00 | 1.14 | 0.00 | 0.70 | -25.71 | 63.62 | -18.31 | 151.67 | 0.5989 | -700.0 | -520.0 | |
| 0.00 | 1.40 | 0.00 | 0.87 | -26.11 | 63.37 | -18.55 | 151.71 | 0.6052 | -650.0 | -560.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
