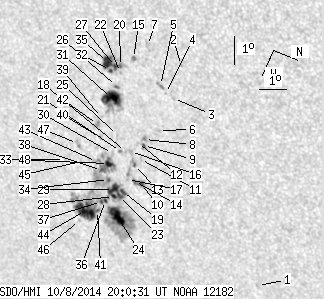

SDO HMI 2014-10-08 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.38 | 304.97 | 68.21 | 216.10 | -15.09 | 121.97 | 40.59 | 241.57 | 0.7163 | 210.0 | 209.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-08 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.85 | -9.52 | 123.04 | 41.66 | 249.48 | 0.7024 | 388.0 | 384.1 | |
| 0.00 | 0.79 | 0.00 | 0.52 | -13.92 | 116.92 | 35.55 | 239.98 | 0.6540 | -714.0 | -609.7 | |
| 0.00 | 1.14 | 0.00 | 0.76 | -13.84 | 118.20 | 36.82 | 240.94 | 0.6680 | -550.0 | -481.5 | |
| 0.00 | 0.79 | 0.00 | 0.52 | -14.14 | 118.19 | 36.81 | 240.54 | 0.6697 | -432.0 | -348.7 | |
| 0.00 | 2.81 | 0.00 | 1.86 | -14.37 | 118.02 | 36.65 | 240.12 | 0.6691 | -707.0 | -594.6 | |
| 0.00 | 1.23 | 0.00 | 0.83 | -13.99 | 119.60 | 38.23 | 241.63 | 0.6847 | 204.0 | 179.6 | |
| 0.00 | 3.51 | 0.00 | 2.31 | -15.17 | 116.95 | 35.57 | 238.32 | 0.6620 | -674.0 | -559.6 | |
| 0.44 | 2.72 | 0.30 | 1.86 | -14.34 | 120.21 | 38.84 | 241.55 | 0.6933 | -504.6 | -314.0 | |
| 0.79 | 2.28 | 0.54 | 1.57 | -14.31 | 120.44 | 39.07 | 241.72 | 0.6957 | -316.9 | -203.1 | |
| 1.93 | 7.28 | 1.35 | 5.10 | -14.01 | 121.83 | 40.45 | 242.92 | 0.7093 | 909.7 | 741.4 | |
| 0.00 | 1.75 | 0.00 | 1.21 | -14.27 | 121.00 | 39.62 | 242.11 | 0.7016 | 145.0 | 136.6 | |
| 0.00 | 0.88 | 0.00 | 0.60 | -14.53 | 120.47 | 39.09 | 241.46 | 0.6972 | 226.0 | 134.4 | |
| 0.70 | 7.71 | 0.49 | 5.39 | -14.41 | 121.31 | 39.93 | 242.11 | 0.7057 | 629.8 | 612.0 | |
| 1.14 | -10.00 | 0.80 | -10.00 | -14.25 | 121.91 | 40.53 | 242.66 | 0.7114 | 877.1 | 999999 | |
| 0.53 | 2.45 | 0.35 | 1.64 | -15.48 | 117.68 | 36.30 | 238.43 | 0.6720 | -835.7 | -620.6 | |
| 0.00 | 2.45 | 0.00 | 1.70 | -14.66 | 120.94 | 39.56 | 241.57 | 0.7030 | 828.0 | 590.8 | |
| 0.00 | 1.05 | 0.00 | 0.74 | -14.49 | 122.00 | 40.62 | 242.41 | 0.7136 | 746.0 | 617.8 | |
| 0.00 | 0.96 | 0.00 | 0.67 | -14.82 | 121.05 | 39.67 | 241.44 | 0.7050 | 676.0 | 580.9 | |
| 2.28 | 80.91 | 1.62 | 58.74 | -14.53 | 122.54 | 41.16 | 242.66 | 0.7196 | 916.3 | 534.2 | |
| 0.88 | 24.11 | 0.59 | 16.30 | -15.80 | 118.22 | 36.85 | 238.37 | 0.6800 | -890.6 | -672.3 | |
| 0.00 | 1.31 | 0.00 | 0.92 | -14.97 | 121.16 | 39.78 | 241.30 | 0.7071 | 865.0 | 769.1 | |
| 0.00 | 1.05 | 0.00 | 0.71 | -15.74 | 118.43 | 37.05 | 238.59 | 0.6818 | -764.0 | -679.1 | |
| 2.28 | -19.00 | 1.63 | -19.00 | -14.58 | 122.75 | 41.38 | 242.70 | 0.7222 | 891.6 | 999999 | |
| 15.87 | 65.75 | 11.46 | 47.58 | -14.45 | 123.56 | 42.18 | 243.31 | 0.7302 | 879.1 | 215.1 | |
| 0.00 | 0.79 | 0.00 | 0.55 | -15.22 | 120.67 | 39.29 | 240.69 | 0.7031 | 547.0 | 509.3 | |
| 0.53 | 1.75 | 0.36 | 1.19 | -15.73 | 118.99 | 37.62 | 238.98 | 0.6879 | -732.5 | -627.6 | |
| 2.10 | -20.00 | 1.42 | -20.00 | -15.96 | 118.33 | 36.96 | 238.25 | 0.6821 | -894.4 | 999999 | |
| 1.67 | -19.00 | 1.19 | -19.00 | -14.76 | 122.93 | 41.55 | 242.57 | 0.7249 | 819.7 | 999999 | |
| 7.19 | -19.00 | 5.13 | -19.00 | -14.83 | 122.68 | 41.30 | 242.35 | 0.7226 | 877.4 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.68 | -15.20 | 121.41 | 40.04 | 241.16 | 0.7110 | 244.0 | 302.5 | |
| 17.80 | 32.96 | 12.20 | 22.61 | -15.77 | 119.51 | 38.14 | 239.27 | 0.6937 | -646.9 | -75.7 | |
| 1.14 | -20.00 | 0.77 | -20.00 | -16.07 | 118.58 | 37.20 | 238.26 | 0.6855 | -556.5 | 999999 | |
| 3.86 | 41.03 | 2.73 | 29.21 | -15.23 | 121.86 | 40.48 | 241.38 | 0.7159 | 917.6 | 326.4 | |
| 0.88 | -33.00 | 0.62 | -33.00 | -15.08 | 122.43 | 41.05 | 241.90 | 0.7213 | 722.7 | 999999 | |
| 9.03 | -20.00 | 6.11 | -20.00 | -16.25 | 118.37 | 36.99 | 237.90 | 0.6843 | -746.7 | 999999 | |
| 1.23 | -19.00 | 0.89 | -19.00 | -14.97 | 123.26 | 41.88 | 242.49 | 0.7295 | 639.5 | 999999 | |
| 0.96 | -19.00 | 0.70 | -19.00 | -15.09 | 123.39 | 42.01 | 242.41 | 0.7315 | 686.8 | 999999 | |
| 1.58 | -33.00 | 1.12 | -33.00 | -15.38 | 122.27 | 40.89 | 241.42 | 0.7211 | -236.2 | 999999 | |
| 0.00 | 0.44 | 0.00 | 0.30 | -15.89 | 120.40 | 39.02 | 239.66 | 0.7039 | -375.0 | -212.4 | |
| 0.00 | 1.40 | 0.00 | 0.98 | -15.76 | 121.14 | 39.77 | 240.28 | 0.7112 | -406.0 | -231.9 | |
| 0.88 | -19.00 | 0.64 | -19.00 | -15.13 | 123.81 | 42.44 | 242.59 | 0.7361 | 656.2 | 999999 | |
| 0.00 | 2.63 | 0.00 | 1.84 | -15.95 | 120.73 | 39.36 | 239.80 | 0.7078 | -473.0 | -175.3 | |
| 0.00 | 3.59 | 0.00 | 2.56 | -15.63 | 122.07 | 40.69 | 241.00 | 0.7202 | -350.0 | -6.8 | |
| 20.69 | -19.00 | 15.20 | -19.00 | -15.51 | 124.10 | 42.73 | 242.27 | 0.7409 | 724.9 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.50 | -16.13 | 122.44 | 41.07 | 240.59 | 0.7268 | 563.0 | 441.6 | |
| 0.00 | 1.14 | 0.00 | 0.85 | -15.60 | 124.62 | 43.24 | 242.43 | 0.7467 | 138.0 | 18.0 | |
| 0.00 | 2.98 | 0.00 | 2.13 | -16.40 | 121.87 | 40.49 | 239.92 | 0.7222 | 475.0 | 447.1 | |
| 0.00 | 0.44 | 0.00 | 0.32 | -16.66 | 122.76 | 41.38 | 240.12 | 0.7328 | 700.0 | 527.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
