SDO HMI 2014-10-08 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.88 | 9.72 | 0.45 | 4.97 | -6.81 | 77.46 | -3.92 | 163.16 | 0.2395 | -71.1 | 5.9 | |
|
previous
or next observation for the same group /

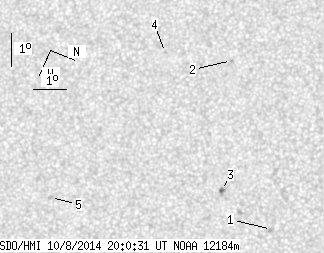

back to the solar disc SDO HMI 2014-10-08 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.45 | 0.00 | 1.24 | -4.06 | 78.20 | -3.18 | 162.90 | 0.1891 | -953.0 | -672.9 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -7.21 | 73.91 | -7.47 | 151.03 | 0.2675 | -819.0 | -704.5 | |
| 0.88 | 3.51 | 0.45 | 1.78 | -5.93 | 77.67 | -3.70 | 163.14 | 0.2224 | 1078.4 | 839.8 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -9.19 | 74.41 | -6.97 | 155.81 | 0.2934 | -934.0 | -714.0 | |
| 0.00 | 1.75 | 0.00 | 0.91 | -10.73 | 79.82 | -1.56 | 174.78 | 0.2956 | 755.0 | 523.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
