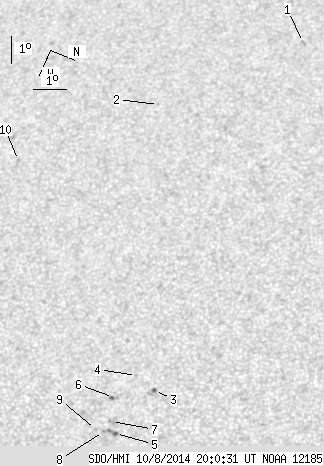

SDO HMI 2014-10-08 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.40 | 20.51 | 0.78 | 11.81 | -13.12 | 58.07 | -23.31 | 130.65 | 0.5056 | 161.7 | 175.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-08 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.93 | 0.00 | 1.24 | -12.51 | 46.33 | -35.05 | 118.41 | 0.6397 | -853.0 | -645.3 | |
| 0.00 | 1.14 | 0.00 | 0.72 | -15.80 | 49.95 | -31.43 | 125.73 | 0.6204 | -551.0 | -502.0 | |
| 0.70 | 3.86 | 0.39 | 2.17 | -11.95 | 59.63 | -21.75 | 130.14 | 0.4762 | -992.1 | -674.9 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -12.67 | 59.33 | -22.05 | 130.92 | 0.4866 | -731.0 | -602.4 | |
| 0.70 | 4.65 | 0.39 | 2.59 | -12.50 | 61.37 | -20.00 | 133.41 | 0.4617 | 1011.1 | 811.7 | |
| 0.00 | 2.63 | 0.00 | 1.48 | -13.03 | 60.26 | -21.12 | 132.72 | 0.4797 | 842.0 | 536.3 | |
| 0.00 | 2.45 | 0.00 | 1.37 | -12.77 | 61.04 | -20.34 | 133.37 | 0.4683 | 800.0 | 654.6 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -12.87 | 61.43 | -19.95 | 134.09 | 0.4649 | 860.0 | 780.3 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -13.13 | 61.45 | -19.93 | 134.52 | 0.4675 | 785.0 | 581.5 | |
| 0.00 | 1.05 | 0.00 | 0.66 | -19.14 | 53.16 | -28.22 | 133.06 | 0.6137 | 565.0 | 474.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
