SDO HMI 2014-10-08 21:03:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.46 | 0.00 | 5.76 | -15.99 | 108.12 | 27.32 | 229.95 | 0.5793 | 269.9 | 382.3 | |
|
previous
or next observation for the same group /

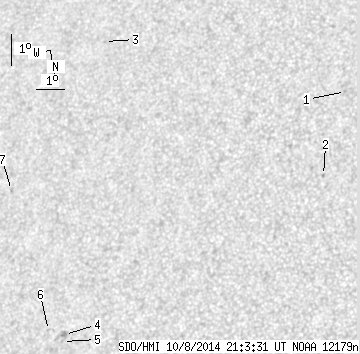

back to the solar disc SDO HMI 2014-10-08 21:03:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.46 | -18.97 | 99.79 | 18.99 | 216.14 | 0.5239 | -750.0 | -651.8 | |
| 0.00 | 1.40 | 0.00 | 0.80 | -16.45 | 100.77 | 19.97 | 220.72 | 0.5042 | -619.0 | -489.9 | |
| 0.00 | 0.96 | 0.00 | 0.62 | -22.59 | 108.29 | 27.50 | 222.09 | 0.6382 | 674.0 | 546.2 | |
| 0.00 | 2.98 | 0.00 | 1.81 | -13.53 | 110.16 | 29.36 | 235.66 | 0.5796 | 866.0 | 788.4 | |
| 0.00 | 1.05 | 0.00 | 0.64 | -13.33 | 110.25 | 29.46 | 236.03 | 0.5792 | 576.0 | 589.1 | |
| 0.00 | 1.14 | 0.00 | 0.70 | -13.79 | 110.73 | 29.93 | 235.79 | 0.5882 | 519.0 | 493.1 | |
| 0.00 | 1.14 | 0.00 | 0.73 | -18.52 | 111.86 | 31.06 | 230.38 | 0.6375 | 623.0 | 559.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
