SDO HMI 2014-10-08 21:03:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.50 | 0.00 | 11.12 | 12.61 | 94.13 | 13.33 | 302.59 | 0.2729 | 111.3 | -26.9 | |
|
previous
or next observation for the same group /

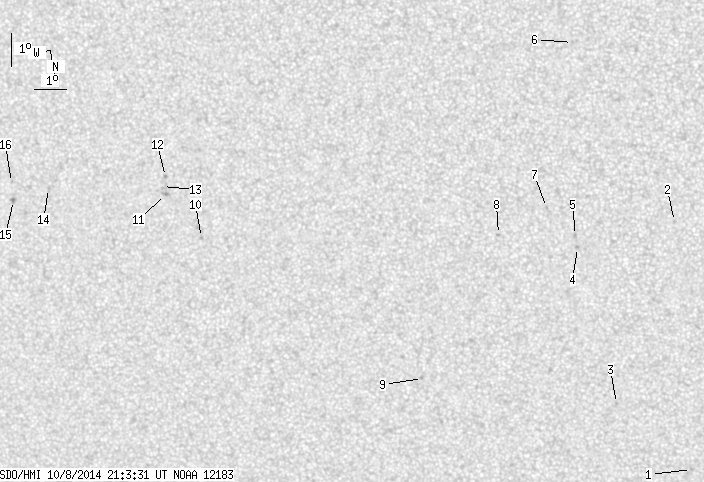

back to the solar disc SDO HMI 2014-10-08 21:03:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.68 | 22.02 | 85.16 | 4.36 | 345.42 | 0.2813 | 897.0 | 658.3 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 14.48 | 83.98 | 3.18 | 339.29 | 0.1527 | 730.0 | 541.5 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 19.54 | 87.02 | 6.22 | 336.01 | 0.2523 | 927.0 | 791.6 | |
| 0.00 | 1.49 | 0.00 | 0.75 | 14.65 | 87.09 | 6.30 | 323.91 | 0.1810 | 966.0 | 784.4 | |
| 0.00 | 1.93 | 0.00 | 0.97 | 14.28 | 87.07 | 6.27 | 322.74 | 0.1757 | 867.0 | 633.0 | |
| 0.00 | 1.05 | 0.00 | 0.52 | 8.58 | 85.88 | 5.09 | 294.55 | 0.0968 | -824.0 | -627.8 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 13.27 | 87.75 | 6.96 | 315.96 | 0.1704 | 849.0 | 630.0 | |
| 0.00 | 1.32 | 0.00 | 0.66 | 13.76 | 89.40 | 8.60 | 312.00 | 0.1964 | 781.0 | 636.7 | |
| 0.00 | 0.61 | 0.00 | 0.32 | 17.53 | 92.84 | 12.04 | 314.68 | 0.2811 | 700.0 | 597.3 | |
| 0.00 | 1.23 | 0.00 | 0.64 | 11.87 | 98.51 | 17.71 | 288.89 | 0.3161 | -854.0 | -646.6 | |
| 0.00 | 2.81 | 0.00 | 1.47 | 10.36 | 99.27 | 18.48 | 283.73 | 0.3224 | -921.0 | -836.5 | |
| 0.00 | 1.49 | 0.00 | 0.78 | 9.84 | 99.13 | 18.33 | 282.19 | 0.3185 | -916.0 | -716.4 | |
| 0.00 | 0.53 | 0.00 | 0.28 | 10.11 | 99.30 | 18.51 | 282.93 | 0.3220 | -490.0 | -536.0 | |
| 0.00 | 1.32 | 0.00 | 0.70 | 9.36 | 102.89 | 22.09 | 279.35 | 0.3778 | 765.0 | 549.9 | |
| 0.00 | 2.37 | 0.00 | 1.28 | 9.46 | 104.11 | 23.31 | 279.26 | 0.3972 | -986.0 | -851.2 | |
| 0.00 | 0.79 | 0.00 | 0.43 | 8.92 | 104.02 | 23.22 | 277.93 | 0.3949 | -710.0 | -588.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
