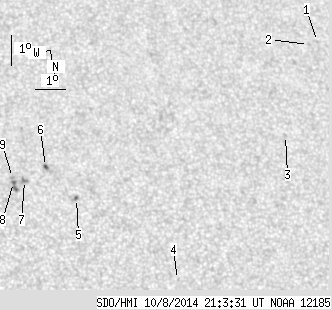

SDO HMI 2014-10-08 21:03:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.11 | 18.59 | 1.17 | 10.58 | -13.01 | 58.61 | -22.18 | 131.71 | 0.4915 | 89.8 | 227.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-08 21:03:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.60 | -15.83 | 49.94 | -30.86 | 126.26 | 0.6142 | -595.0 | -442.7 | |
| 0.00 | 1.23 | 0.00 | 0.77 | -15.77 | 50.29 | -30.51 | 126.48 | 0.6099 | -567.0 | -537.0 | |
| 0.00 | 1.49 | 0.00 | 0.89 | -12.96 | 52.14 | -28.66 | 124.14 | 0.5668 | -631.0 | -517.2 | |
| 0.00 | 0.44 | 0.00 | 0.25 | -8.95 | 57.09 | -23.70 | 122.62 | 0.4734 | 550.0 | 532.0 | |
| 0.53 | 2.81 | 0.29 | 1.57 | -11.94 | 59.61 | -21.19 | 130.87 | 0.4696 | -924.5 | -790.8 | |
| 1.05 | 2.37 | 0.59 | 1.33 | -13.10 | 60.30 | -20.50 | 133.67 | 0.4734 | 688.6 | 504.5 | |
| 0.00 | 3.68 | 0.00 | 2.05 | -12.76 | 61.09 | -19.70 | 134.27 | 0.4611 | 829.0 | 696.1 | |
| 0.53 | 4.47 | 0.29 | 2.49 | -12.76 | 61.46 | -19.34 | 134.79 | 0.4570 | 957.3 | 873.1 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -12.92 | 61.45 | -19.35 | 135.03 | 0.4589 | 789.0 | 706.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
