SDO HMI 2014-10-08 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.31 | 0.00 | 6.91 | -16.86 | 106.88 | 26.60 | 227.59 | 0.5827 | 127.6 | 272.9 | |
|
previous
or next observation for the same group /

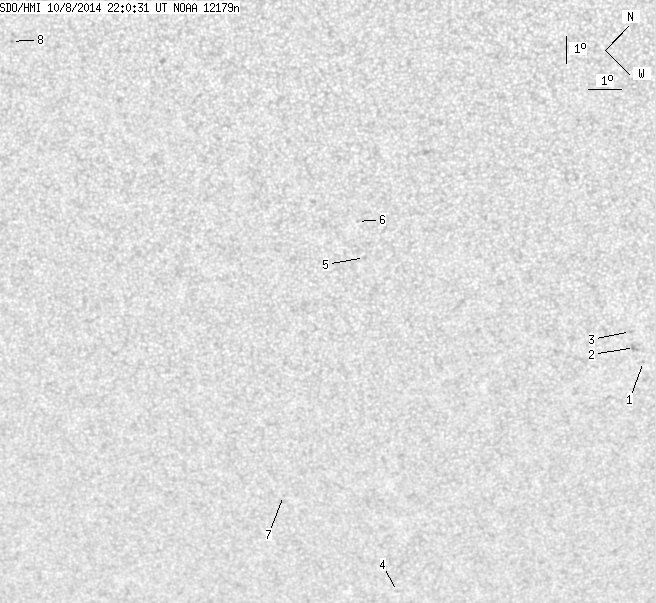

back to the solar disc SDO HMI 2014-10-08 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.75 | -13.66 | 110.84 | 30.57 | 236.53 | 0.5946 | 612.0 | 489.4 | |
| 0.00 | 3.42 | 0.00 | 2.09 | -13.51 | 110.24 | 29.96 | 236.23 | 0.5865 | 756.0 | 730.7 | |
| 0.00 | 1.40 | 0.00 | 0.85 | -13.21 | 109.69 | 29.42 | 236.18 | 0.5778 | 777.0 | 621.8 | |
| 0.00 | 1.23 | 0.00 | 0.85 | -24.92 | 112.84 | 32.57 | 224.15 | 0.7032 | 431.0 | 311.6 | |
| 0.00 | 1.49 | 0.00 | 0.87 | -17.17 | 101.92 | 21.64 | 222.02 | 0.5285 | -611.0 | -438.9 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -16.46 | 100.81 | 20.54 | 221.50 | 0.5099 | -688.0 | -568.7 | |
| 0.00 | 0.70 | 0.00 | 0.46 | -25.03 | 107.21 | 26.94 | 218.87 | 0.6564 | 446.0 | 404.1 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -19.96 | 88.96 | 8.69 | 197.83 | 0.4656 | -702.0 | -592.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
