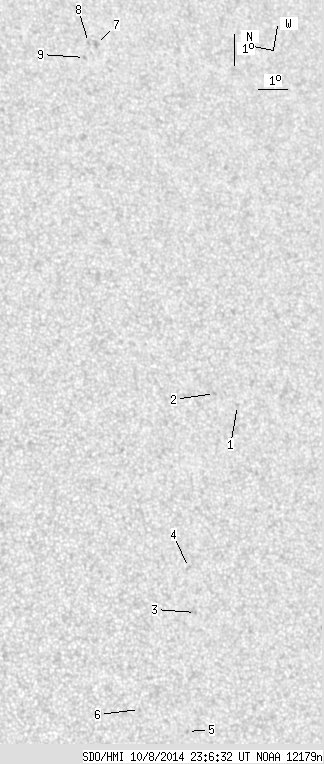

SDO HMI 2014-10-08 23:06:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.75 | 0.00 | 8.64 | -16.91 | 100.78 | 21.12 | 220.15 | 0.5347 | -218.0 | -67.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-08 23:06:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 0.83 | -19.79 | 99.83 | 20.17 | 216.80 | 0.5437 | -641.0 | -500.4 | |
| 0.00 | 1.58 | 0.00 | 0.92 | -18.97 | 99.97 | 20.31 | 217.96 | 0.5356 | -709.0 | -528.2 | |
| 0.00 | 1.23 | 0.00 | 0.69 | -19.52 | 92.78 | 13.12 | 206.29 | 0.4850 | -715.0 | -529.7 | |
| 0.00 | 2.46 | 0.00 | 1.39 | -19.04 | 94.14 | 14.48 | 209.08 | 0.4881 | -720.0 | -537.7 | |
| 0.00 | 1.23 | 0.00 | 0.69 | -19.94 | 88.98 | 9.31 | 199.03 | 0.4684 | -703.0 | -534.8 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -18.24 | 89.27 | 9.61 | 200.94 | 0.4452 | -733.0 | -610.4 | |
| 0.00 | 3.16 | 0.00 | 1.94 | -13.55 | 110.30 | 30.63 | 236.75 | 0.5945 | 794.0 | 669.6 | |
| 0.00 | 1.23 | 0.00 | 0.75 | -13.29 | 110.27 | 30.61 | 237.11 | 0.5924 | 616.0 | 567.7 | |
| 0.00 | 1.23 | 0.00 | 0.75 | -13.22 | 109.71 | 30.05 | 236.72 | 0.5853 | 849.0 | 650.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
