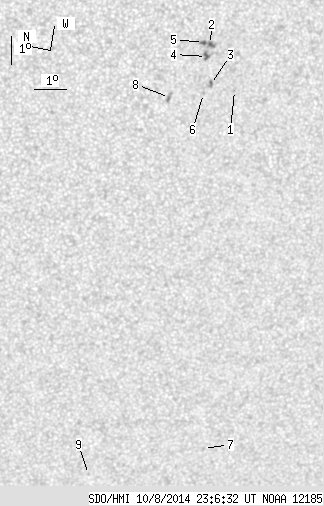

SDO HMI 2014-10-08 23:06:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.99 | 21.83 | 1.65 | 12.27 | -12.94 | 59.24 | -20.42 | 134.06 | 0.4713 | 372.7 | 252.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-08 23:06:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.49 | -13.92 | 60.13 | -19.53 | 136.30 | 0.4717 | 396.0 | 426.4 | |
| 0.79 | 7.01 | 0.44 | 3.87 | -12.83 | 61.54 | -18.13 | 136.76 | 0.4447 | 993.8 | 779.3 | |
| 0.00 | 2.89 | 0.00 | 1.61 | -13.13 | 60.24 | -19.43 | 135.25 | 0.4620 | 878.0 | 618.9 | |
| 1.32 | 4.56 | 0.73 | 2.52 | -12.80 | 61.13 | -18.53 | 136.08 | 0.4487 | 848.1 | 576.1 | |
| 0.88 | -2.00 | 0.48 | -2.00 | -12.60 | 61.57 | -18.09 | 136.45 | 0.4417 | 967.8 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -12.98 | 59.92 | -19.75 | 134.54 | 0.4638 | 538.0 | 408.9 | |
| 0.00 | 1.40 | 0.00 | 0.89 | -15.80 | 47.55 | -32.11 | 125.15 | 0.6279 | -186.0 | -283.3 | |
| 0.00 | 3.51 | 0.00 | 1.95 | -11.96 | 59.66 | -20.01 | 132.53 | 0.4561 | -926.0 | -786.6 | |
| 0.00 | 0.79 | 0.00 | 0.50 | -12.44 | 46.34 | -33.33 | 119.52 | 0.6188 | -586.0 | -510.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
