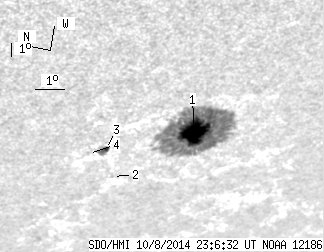

SDO HMI 2014-10-08 23:06:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.93 | 271.03 | 52.57 | 324.73 | -20.62 | 18.82 | -60.84 | 116.08 | 0.9119 | 732.3 | 155.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-08 23:06:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.74 | 261.30 | 49.97 | 313.15 | -20.72 | 18.84 | -60.82 | 116.19 | 0.9119 | 818.7 | 175.5 | |
| 0.00 | 0.26 | 0.00 | 0.34 | -18.65 | 16.13 | -63.54 | 113.24 | 0.9248 | -303.0 | -297.0 | |
| 2.19 | 8.24 | 2.60 | 9.78 | -18.04 | 18.25 | -61.42 | 113.20 | 0.9101 | -141.6 | -481.4 | |
| 0.00 | 1.23 | 0.00 | 1.46 | -17.54 | 18.06 | -61.60 | 112.62 | 0.9104 | -280.0 | -194.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
