SDO HMI 2014-10-09 00:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.49 | 0.00 | 3.30 | -6.43 | 76.48 | -2.69 | 168.85 | 0.2275 | -395.8 | -82.4 | |
|
previous
or next observation for the same group /

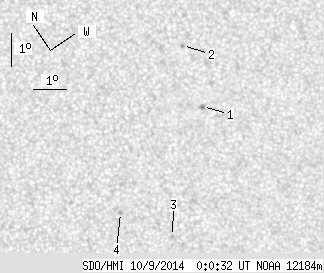

back to the solar disc SDO HMI 2014-10-09 00:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.63 | 0.00 | 1.33 | -5.95 | 77.79 | -1.38 | 173.56 | 0.2146 | 1138.0 | 849.8 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -4.06 | 78.31 | -0.86 | 175.27 | 0.1814 | -910.0 | -751.1 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -8.78 | 74.83 | -4.34 | 163.95 | 0.2718 | -848.0 | -628.4 | |
| 0.00 | 1.40 | 0.00 | 0.72 | -7.28 | 73.94 | -5.23 | 158.92 | 0.2524 | -963.0 | -757.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
