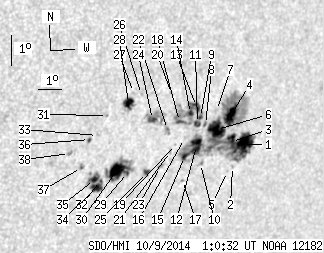

SDO HMI 2014-10-09 01:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 146.36 | 393.70 | 108.84 | 292.25 | -15.12 | 122.18 | 43.57 | 243.17 | 0.7475 | 278.9 | 232.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-09 01:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.15 | 227.15 | 21.85 | 172.52 | -15.47 | 124.43 | 45.82 | 243.87 | 0.7720 | 610.7 | 303.9 | |
| 0.00 | 1.23 | 0.00 | 0.95 | -16.16 | 124.14 | 45.52 | 242.92 | 0.7720 | 466.0 | 359.4 | |
| 10.17 | -1.00 | 7.80 | -1.00 | -15.33 | 123.86 | 45.24 | 243.77 | 0.7657 | 655.0 | 999999 | |
| 14.82 | -1.00 | 11.24 | -1.00 | -14.48 | 123.59 | 44.97 | 244.68 | 0.7593 | 790.3 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.61 | -16.30 | 123.96 | 45.34 | 242.65 | 0.7709 | 463.0 | 376.3 | |
| 20.61 | -1.00 | 15.53 | -1.00 | -14.88 | 123.08 | 44.46 | 243.94 | 0.7559 | 834.4 | 999999 | |
| 0.00 | 2.19 | 0.00 | 1.64 | -14.27 | 122.92 | 44.30 | 244.62 | 0.7515 | 611.0 | 467.0 | |
| 0.61 | 2.02 | 0.46 | 1.50 | -14.68 | 122.55 | 43.93 | 243.93 | 0.7495 | 611.3 | 508.7 | |
| 1.40 | 44.47 | 1.04 | 32.60 | -14.44 | 122.27 | 43.66 | 244.09 | 0.7456 | 814.4 | 595.9 | |
| 0.00 | 3.16 | 0.00 | 2.38 | -15.94 | 122.67 | 44.05 | 242.44 | 0.7564 | 504.0 | 402.8 | |
| 2.89 | -9.00 | 2.14 | -9.00 | -14.62 | 122.19 | 43.57 | 243.82 | 0.7455 | 824.9 | 999999 | |
| 13.24 | -1.00 | 9.88 | -1.00 | -15.34 | 122.33 | 43.71 | 243.01 | 0.7502 | 414.0 | 999999 | |
| 3.95 | -9.00 | 2.90 | -9.00 | -14.07 | 122.01 | 43.40 | 244.42 | 0.7412 | 807.0 | 999999 | |
| 2.54 | -9.00 | 1.87 | -9.00 | -14.27 | 121.81 | 43.19 | 244.06 | 0.7399 | 834.9 | 999999 | |
| 3.42 | -1.00 | 2.54 | -1.00 | -15.65 | 121.90 | 43.28 | 242.40 | 0.7472 | -117.8 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.71 | -15.07 | 121.75 | 43.13 | 243.04 | 0.7429 | 208.0 | 212.5 | |
| 0.00 | 0.96 | 0.00 | 0.72 | -16.43 | 122.02 | 43.41 | 241.51 | 0.7522 | 305.0 | 304.7 | |
| 1.58 | -9.00 | 1.15 | -9.00 | -14.50 | 121.39 | 42.78 | 243.57 | 0.7366 | 766.1 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.19 | -15.23 | 121.40 | 42.79 | 242.66 | 0.7401 | 692.0 | 613.0 | |
| 0.00 | 1.14 | 0.00 | 0.82 | -13.56 | 120.84 | 42.23 | 244.46 | 0.7264 | 235.0 | 191.9 | |
| 0.00 | 1.67 | 0.00 | 1.22 | -15.44 | 121.25 | 42.63 | 242.31 | 0.7395 | 612.0 | 456.3 | |
| 0.00 | 4.21 | 0.00 | 3.05 | -14.71 | 120.94 | 42.32 | 243.06 | 0.7328 | 848.0 | 686.6 | |
| 0.00 | 2.46 | 0.00 | 1.80 | -15.90 | 120.94 | 42.32 | 241.58 | 0.7386 | -499.0 | -239.6 | |
| 3.42 | 14.65 | 2.44 | 10.48 | -14.34 | 120.23 | 41.61 | 243.15 | 0.7234 | -106.4 | 219.9 | |
| 2.10 | 3.86 | 1.53 | 2.80 | -16.05 | 120.39 | 41.77 | 241.10 | 0.7336 | -517.4 | -246.2 | |
| 0.00 | 0.96 | 0.00 | 0.68 | -13.50 | 119.59 | 40.97 | 243.88 | 0.7124 | 655.0 | 534.4 | |
| 0.00 | 1.23 | 0.00 | 0.86 | -13.41 | 119.24 | 40.63 | 243.81 | 0.7082 | 313.0 | 254.8 | |
| 7.54 | 12.28 | 5.28 | 8.59 | -13.75 | 119.11 | 40.49 | 243.29 | 0.7084 | -613.3 | -163.5 | |
| 0.88 | 40.43 | 0.63 | 28.78 | -15.99 | 119.58 | 40.96 | 240.72 | 0.7249 | -335.4 | -204.0 | |
| 16.93 | -29.00 | 12.03 | -29.00 | -15.89 | 119.10 | 40.49 | 240.56 | 0.7194 | -704.5 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.61 | -14.07 | 118.33 | 39.71 | 242.43 | 0.7015 | -442.0 | -416.8 | |
| 0.70 | 19.91 | 0.50 | 14.02 | -16.16 | 118.52 | 39.90 | 239.87 | 0.7147 | -655.8 | -679.4 | |
| 0.00 | 1.14 | 0.00 | 0.79 | -14.69 | 118.06 | 39.44 | 241.47 | 0.7017 | -599.0 | -509.9 | |
| 6.84 | -32.00 | 4.83 | -32.00 | -16.38 | 118.41 | 39.79 | 239.53 | 0.7147 | -680.9 | 999999 | |
| 3.16 | -32.00 | 2.22 | -32.00 | -16.11 | 118.26 | 39.64 | 239.78 | 0.7117 | -885.3 | 999999 | |
| 0.88 | 2.10 | 0.61 | 1.45 | -14.79 | 117.76 | 39.14 | 241.16 | 0.6991 | -661.6 | -558.4 | |
| 0.53 | 1.75 | 0.37 | 1.22 | -15.68 | 117.63 | 39.02 | 239.94 | 0.7026 | -507.7 | -436.4 | |
| 0.00 | 1.84 | 0.00 | 1.26 | -15.19 | 117.04 | 38.43 | 240.21 | 0.6935 | -771.0 | -675.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
